Product Description
Key Features
High Power 160KW DC Fast Charging
- 160KW output power, single-gun 0–250A
- Output voltage: DC 200V–1000V
- Charging efficiency ≥95%
- Complies with IEC 62196-3 Type 2 & IEC 61851

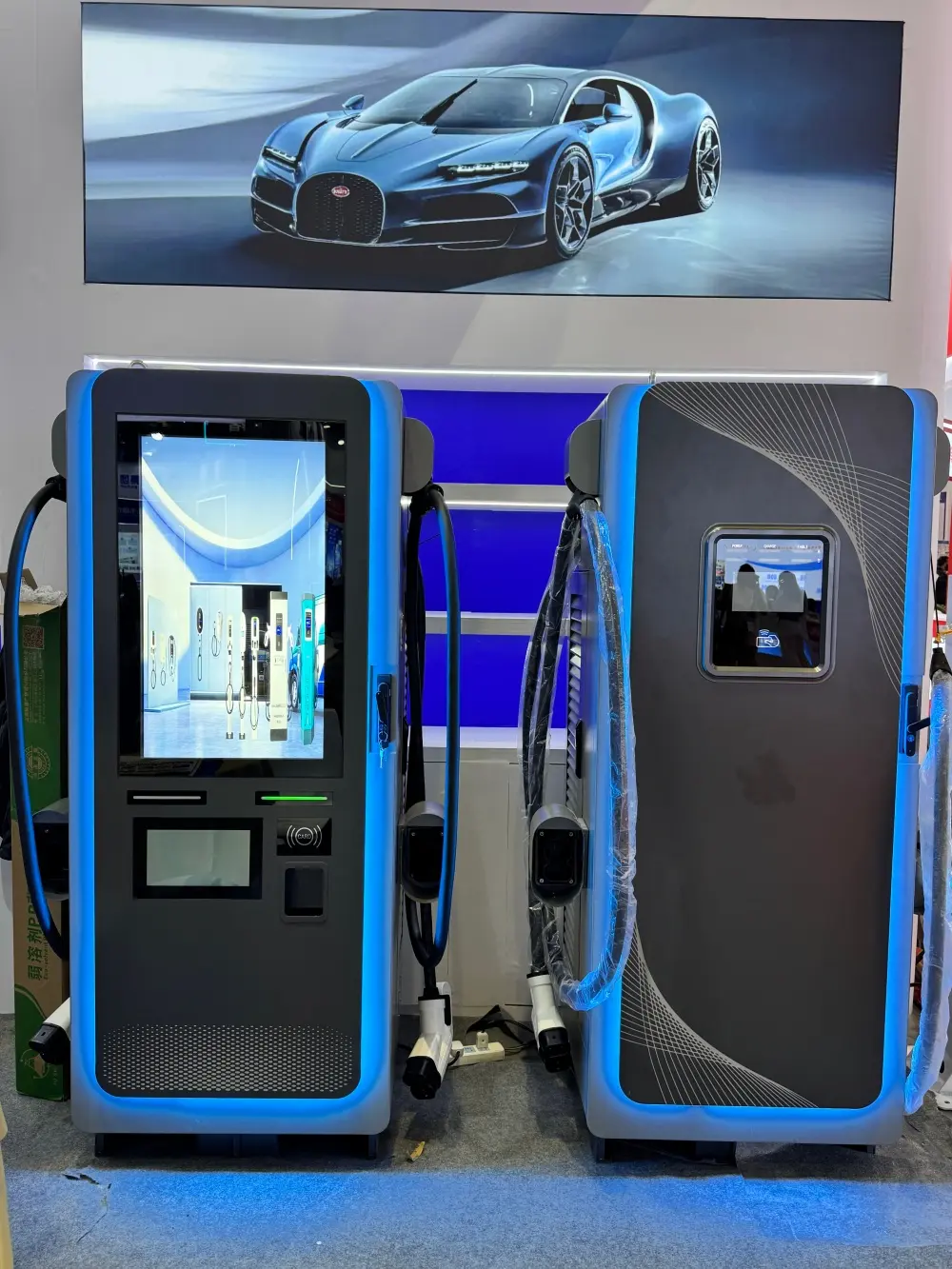

32” HD Advertising Screen
- 32-inch commercial display for video/picture ads
- Supports WiFi, multimedia playback, scrolling subtitles
- Boost revenue with advertising business model
- 10-inch touch control screen for user operation
Multiple Charging & Payment Methods
- Plug & Charge / IC Card / APP Scan Code
- Billing: auto, fixed power, amount, time
- Built-in POS machine for offline payment
- OCPP 1.6 compatible for cloud management
CE Certified & Safe
- IP54 waterproof & dustproof for outdoor use
- Over-voltage, under-voltage, over-current, over-temperature, short-circuit, insulation, surge protection

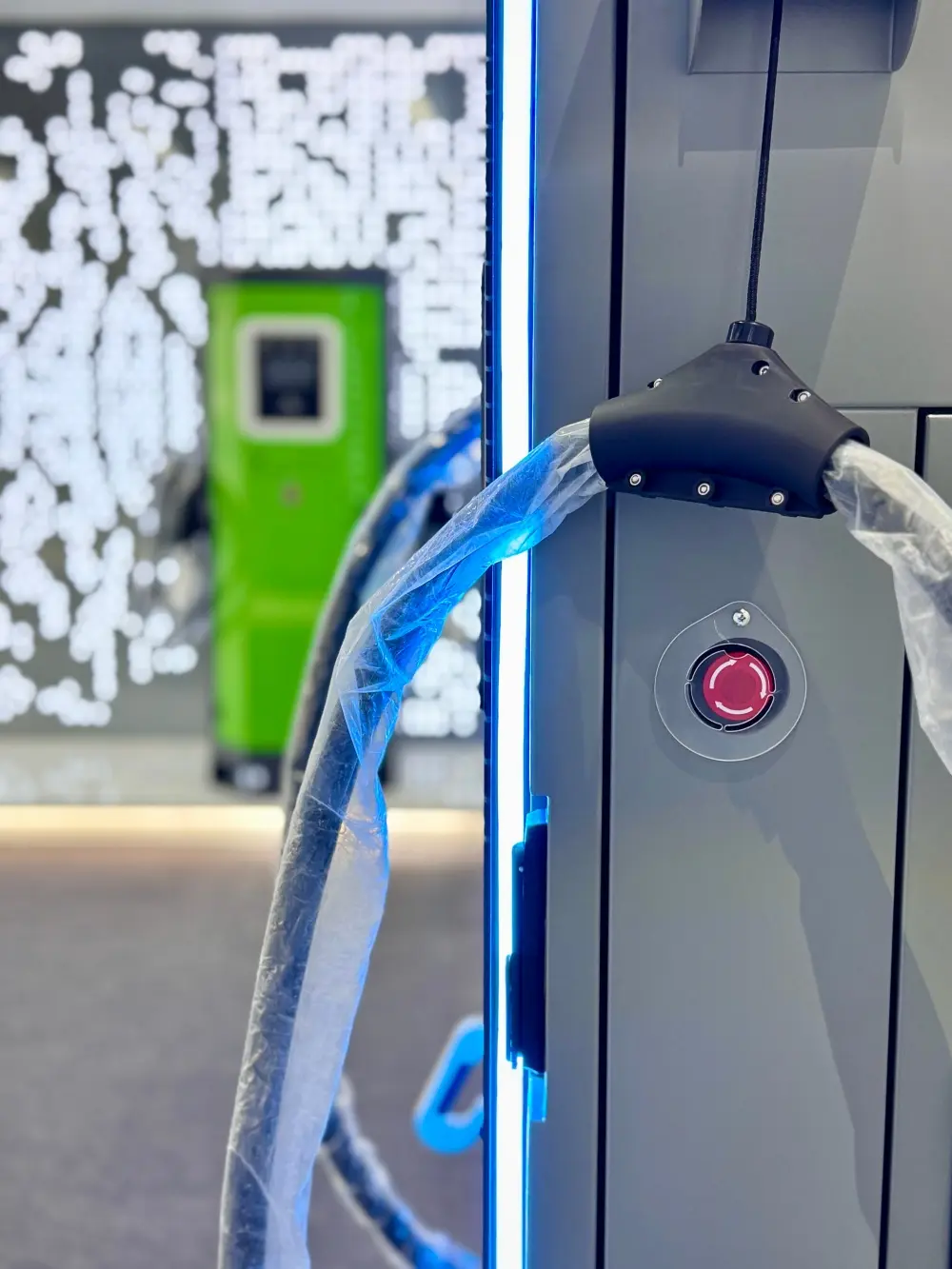

- Emergency stop button, leakage protection
- Grounding system ≤4Ω, safe for public use
Stable & Reliable
- Forced air cooling
- Working temp: -30℃ to +50℃
- Storage temp: -40℃ to +70℃
- 3m/5m cable (customizable)
- 4G + Ethernet communication
Technical Specifications
| Item | Specification |
|---|---|
| Model | CE-JSDC400230A-2-32POS |
| Rated Power | 60KW-240KW |
| Output Voltage | DC 200V – 1000V |
| Output Current | 0 – 250A (single gun) |
| Input | AC 400V±10%, 3-phase 5-wire |
| Protection Level | IP54 (outdoor) |
| Cooling | Forced air cooling |
| Screen | 32” advertising + 10” operation |
| Communication | Ethernet, 4G |
| Protocol | OCPP 1.6, ISO15118, IEC 61851 |
| Dimension | 750×607×1800 mm |
| Weight | About 250kg |
| Certification | CE |
Applications
- Commercial shopping centers & complexes
- Residential communities
- Urban public charging stations
- Gas stations & highway service areas
- Parking lots & logistics stations
Why Choose Our 160KW EV Charger?
- CE Certified – fully compliant with EU market standards
- Advertising + Charging + POS – triple income model
- 160KW ultra-fast charging – short charging time, high user satisfaction
- IP54 outdoor design – rainproof, dustproof, durable
- OCPP 1.6 cloud platform – remote monitoring & management
- 6.2-year warranty – professional after-sales support
Packaging & Delivery
- Standard package: charger, manual, expansion screws, keys, test report
- Transport: by sea/air/express, shockproof & waterproof
- Lead time: 15–25 working days (depends on quantity)
Frequently Asked Questions
Q: How does the 32-inch advertising display operate?
The built-in commercial screen supports remote content management via WiFi or Ethernet, enabling video and picture playback alongside scrolling subtitles to monetize public charging spaces.
Q: Which payment systems are supported on this charging station?
The system accommodates a variety of convenient payment channels including integrated POS card processing for offline payments, RFID IC cards, and mobile app-based QR code billing.
Q: Can this charging unit be integrated with third-party software platforms?
Yes, the charger supports OCPP 1.6, ISO15118, and IEC 61851 protocols, making it compatible with major commercial EV billing platforms and central monitoring networks.
Q: Is this fast charger safe for harsh outdoor environments?
The charger features an IP54 waterproof and dustproof rated enclosure, forced air cooling, and comprehensive safety trip mechanisms capable of operating between -30℃ and +50℃.
Q: What is the standard warranty coverage and service lead time?
The unit is backed by a 6.2-year manufacturer warranty, with typical production and dispatch lead times between 15 and 25 working days depending on order size.
