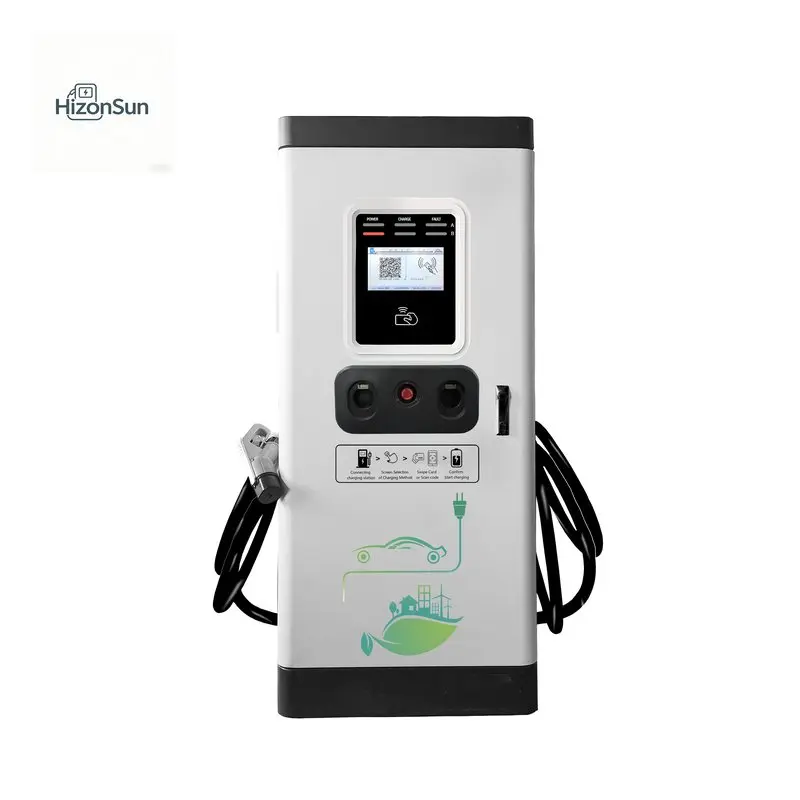

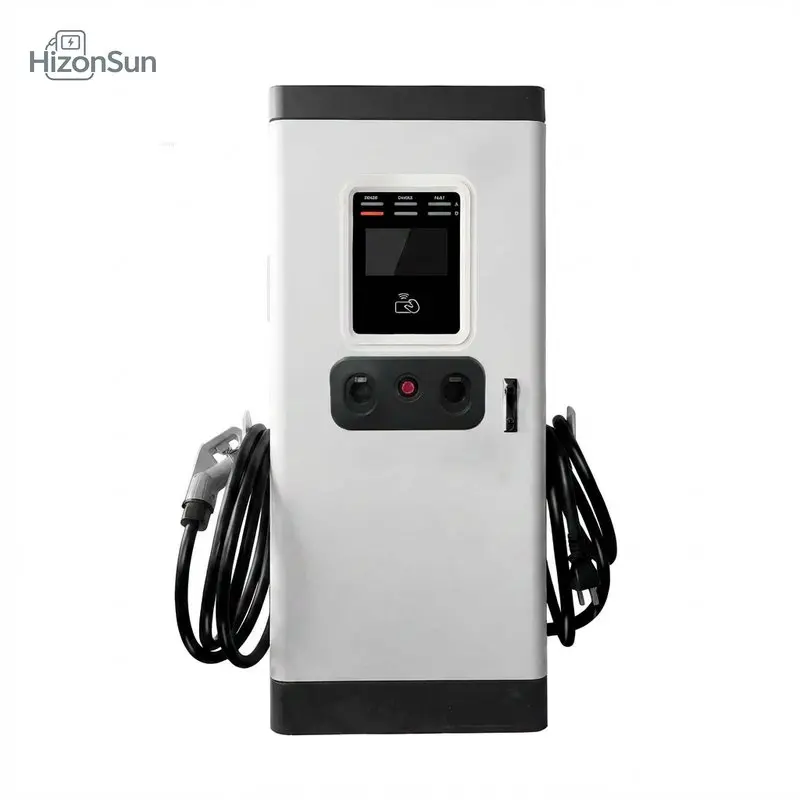

China 60KW-400KW Integrated DC EV Charging Pile | Commercial Fast Charger Suppliers, Manufacturers
Product Description
Why Choose Our 60KW-400KW Modular DC EV Charging Pile?
1. Customizable Modular Design & Power Output
Our 120KW-320KW Integrated DC EV Charging Pile features a flexible modular design, built with 30KW or 40KW core modules. This allows you to customize the power output to match your specific needs—choose from 120KW, 160KW, 180KW, 240KW, or 320KW configurations. The modular structure also simplifies maintenance, as individual modules can be replaced without shutting down the entire charger, minimizing downtime and maximizing revenue.
2. International Standard Compliance & Wide Compatibility
This IEC 62196-3 TYPE2 Charger and OCPP1.6 EV Charger adheres to global standards, including IEC 61851, ensuring compatibility with all major EV models. The TYPE2 connector is widely used across Europe and beyond, making it ideal for public and commercial applications where diverse vehicle types need charging. The OCPP1.6 protocol enables seamless integration with backend management systems, supporting remote monitoring and operation.
3. IP54 Outdoor Protection & Harsh Environment Resistance
Built for outdoor use, our IP54 Outdoor EV Charger features a high-strength anti-corrosion metal shell and forced air cooling system. It withstands extreme temperatures ranging from -30℃ to 50℃, and its IP54 rating ensures complete protection against dust and rain—perfect for all weather conditions. Whether installed in hot, cold, or humid environments, this charger maintains consistent performance year-round.
4. Flexible Charging Modes & Dual-Port Efficiency
Equipped with a 7-inch touch screen, our Dual Port EV Fast Charger supports three convenient start modes: APP scan, RFID card, and Plug&Charge. The two independent charging ports allow simultaneous charging of two vehicles without mutual interference, significantly boosting charging efficiency and increasing your business’s throughput. Drivers can easily monitor charging status, voltage, current, and time via the intuitive touch screen.
5. Comprehensive Safety Protection & High Efficiency
Safety is our top priority. The charger is equipped with full-range safety protection, including over-voltage, over-current, over-temperature, insulation detection, emergency stop, and lightning/surge protection. In emergencies, it cuts DC output within 100ms, ensuring safe charging for both vehicles and users. With a conversion efficiency of ≥95%, power factor ≥0.98, and THD <5%, this charger minimizes energy loss, reducing your operational costs.
6. Smart Remote Management & Easy Installation
Our 120KW-320KW Integrated DC EV Charging Pile supports Ethernet and 4G connectivity, enabling smart remote management. You can monitor real-time charging data, track usage, and perform remote upgrades—all from your backend system. The floor-standing design (750×600×1700mm) comes with a reinforced concrete foundation for stable installation, and customizable 2/3/5m pure copper flame-retart cables ensure safe and reliable power transmission.
Key Specifications of 120KW-320KW DC EV Charging Pile
| Parameter Category | Specific Parameters | Detailed Description |
| Power Configuration | Rated Output Power | 60KW, 120KW, 160KW, 180KW, 240KW, 320KW, 400KW (Customizable) |
| Core Module Specification | 30KW, 40KW modular design, supporting flexible combination | |
| Max Single Gun Output Power | 250KW | |
| Conversion Efficiency | ≥95% | |
| Power Factor | ≥0.98 | |
| Total Harmonic Distortion (THD) | <5% | |
| Electrical Parameters | Output Voltage | DC200~1000V, constant power range DC300~1000V |
| Max Single Gun Output Current | 250A | |
| AC Input Voltage | AC400±10% (3-phase + Neutral + Ground) | |
| Input Frequency | 50/60Hz | |
| Protection & Environment | Protection Grade | IP54 (Dust-proof, rain-proof, suitable for outdoor use) |
| Operating Temperature | -30℃~+50℃ (Derated output at 50~70℃) | |
| Storage Temperature | -40℃~+70℃ | |
| Ambient Humidity | 5%~95% (No condensation) | |
| Structure & Installation | Overall Dimension | 750×600×1700mm (Width×Depth×Height) |
| Installation Method | Floor-standing, requiring reinforced concrete foundation (≥200mm high) | |
| Charging Cable | 2/3/5m (Customizable), pure copper flame-retart material | |
| Cooling Method | Forced air cooling | |
| Function Configuration | Charging Modes | APP scan, RFID card, Plug&Charge (Optional) |
| Charging Ports | 2 independent ports, supporting simultaneous charging without mutual interference | |
| Communication Method | Ethernet, 4G (Optional), compatible with OCPP1.6 protocol | |
| Display Interface | 7-inch touch screen, supporting multi-language (English/Russian/Chinese/Kazakh) | |
| Safety & After-sales | Safety Protection | Comprehensive protection including over-voltage, over-current, over-temperature, short circuit, insulation detection, lightning protection, emergency stop, etc.; cuts DC output within 100ms in emergencies |
| After-sales Guarantee | 2-year warranty, providing global technical support and on-site maintenance services | |
| Standard Compliance | Compliance Standards | IEC 62196-3 TYPE2 (European standard interface), IEC 61851, OCPP1.6 |
Ideal Applications for Our Commercial DC EV Fast Charger
Our 120KW-320KW Integrated DC EV Charging Pile is designed for commercial use, making it suitable for:
- Public charging stations (urban and suburban areas)
- Commercial fleets (buses, taxis, logistics vehicles, vehicles)
- Highway service areas and rest stops
- Shopping mall parking lots and residential complexes
- Corporate parking lots and public facilities
Why Partner With Us for Your EV Charging Needs?
We are committed to providing cost-effective, reliable EV charging solutions that help you grow your business. Our 120KW-320KW DC EV Charging Pile offers:
- Modular flexibility to scale with your business
- International compliance for global market access
- Durable IP54 design for 24/7 outdoor operation
- Smart remote management to reduce operational costs
- 2-year warranty and global on-site maintenance support
Invest in the 60KW-400KW DC EV Charging Pile today and deliver fast, safe, and reliable charging services to your customers. Contact us for a custom quote and start growing your commercial EV charging business with a trusted partner.

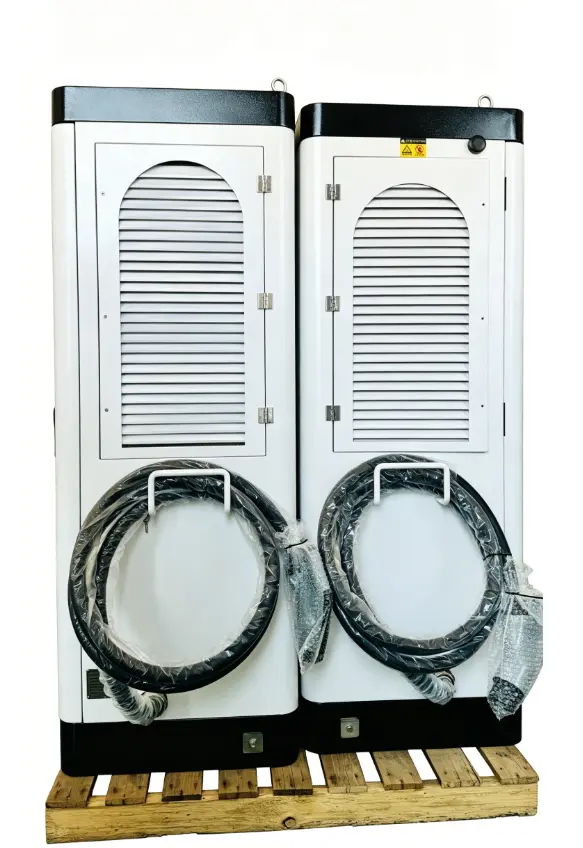

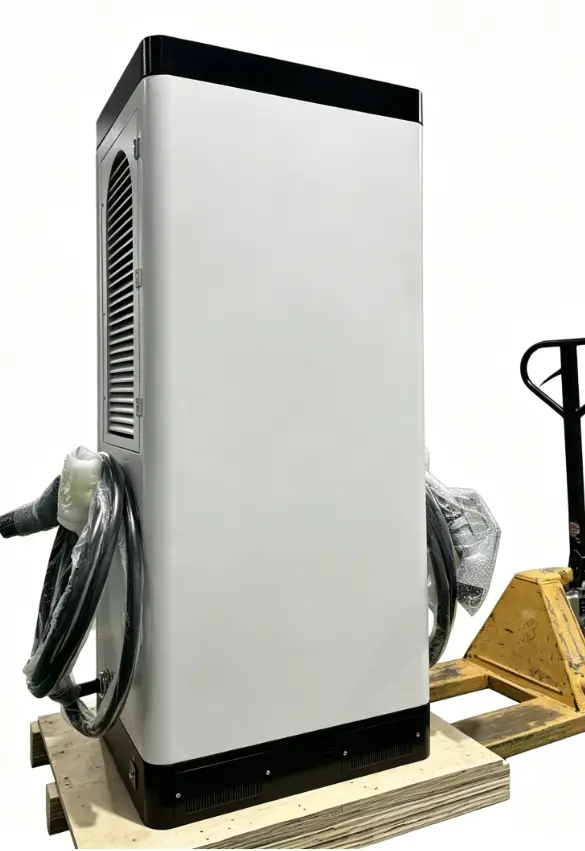

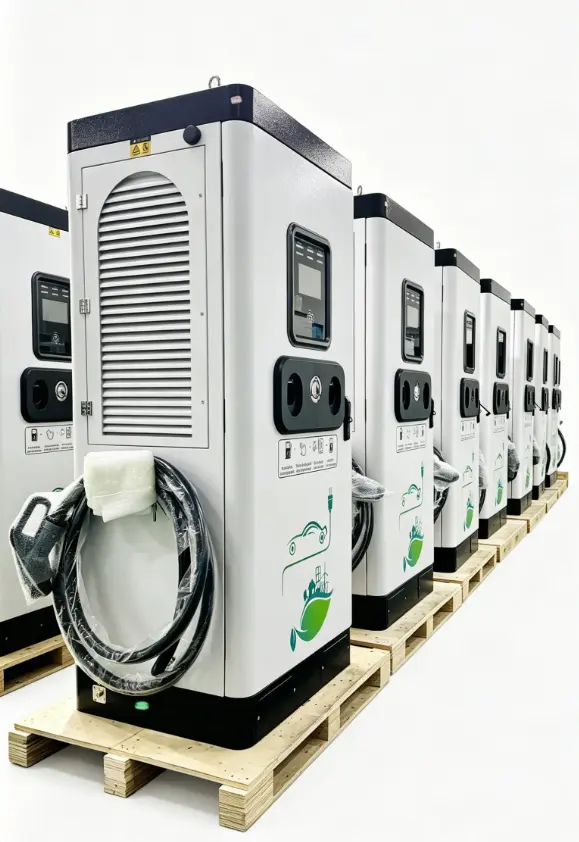

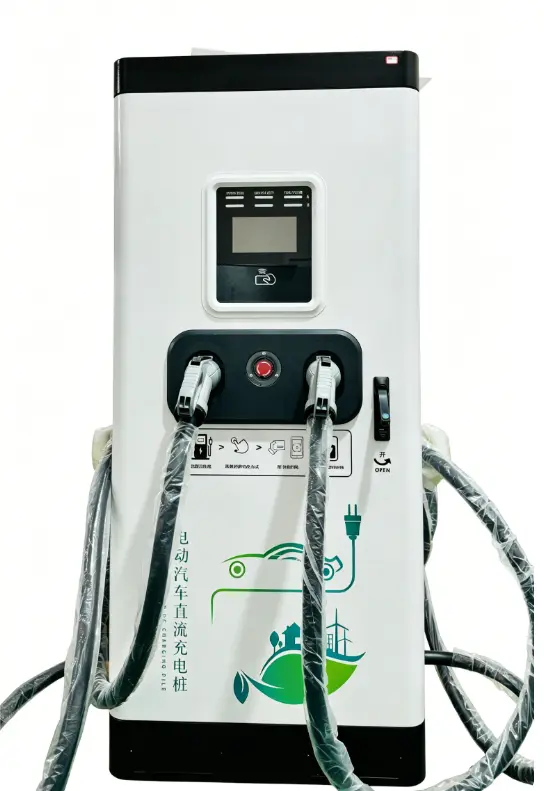

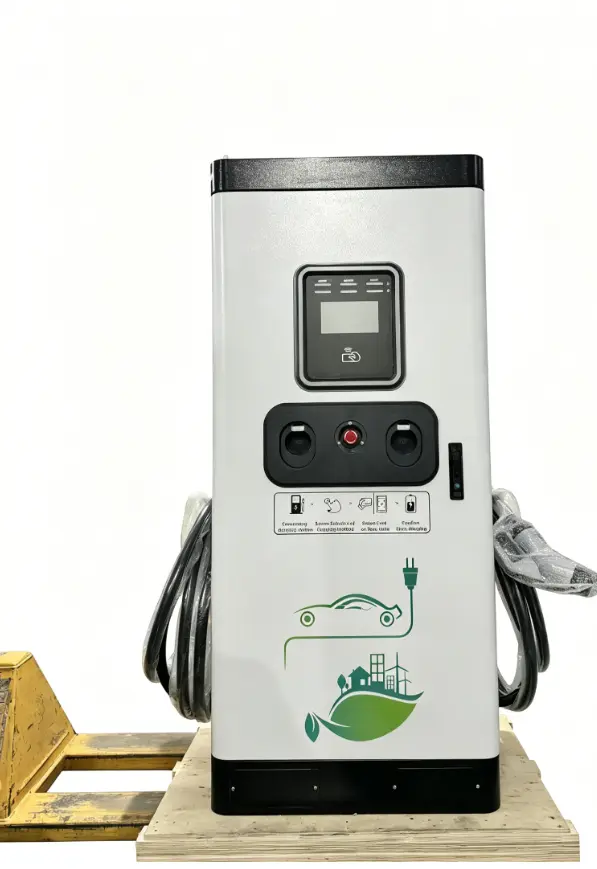

Product Visuals
Frequently Asked Questions (FAQ)
The system utilizes 30KW or 40KW core modules and supports rated output configurations ranging from 60KW, 120KW, 160KW, 180KW, 240KW, 320KW up to 400KW, with single gun output power up to 250KW.
Yes. It features 2 independent charging ports supporting simultaneous charging without mutual interference, maximizing operational efficiency and site throughput.
The unit supports APP scan, RFID card, and optional Plug&Charge modes, operated via a clear 7-inch multi-language touch screen.
Yes, it features an IP54-rated anti-corrosion enclosure with forced air cooling, operating reliably in temperatures from -30℃ to +50℃, protected against heavy rain and dust.
Yes, the charger supports Ethernet and optional 4G connectivity, fully compliant with OCPP1.6 protocol for remote management, diagnostics, and software updates.
A 2-year warranty is included alongside global technical support and on-site maintenance services to ensure uninterrupted operation.
