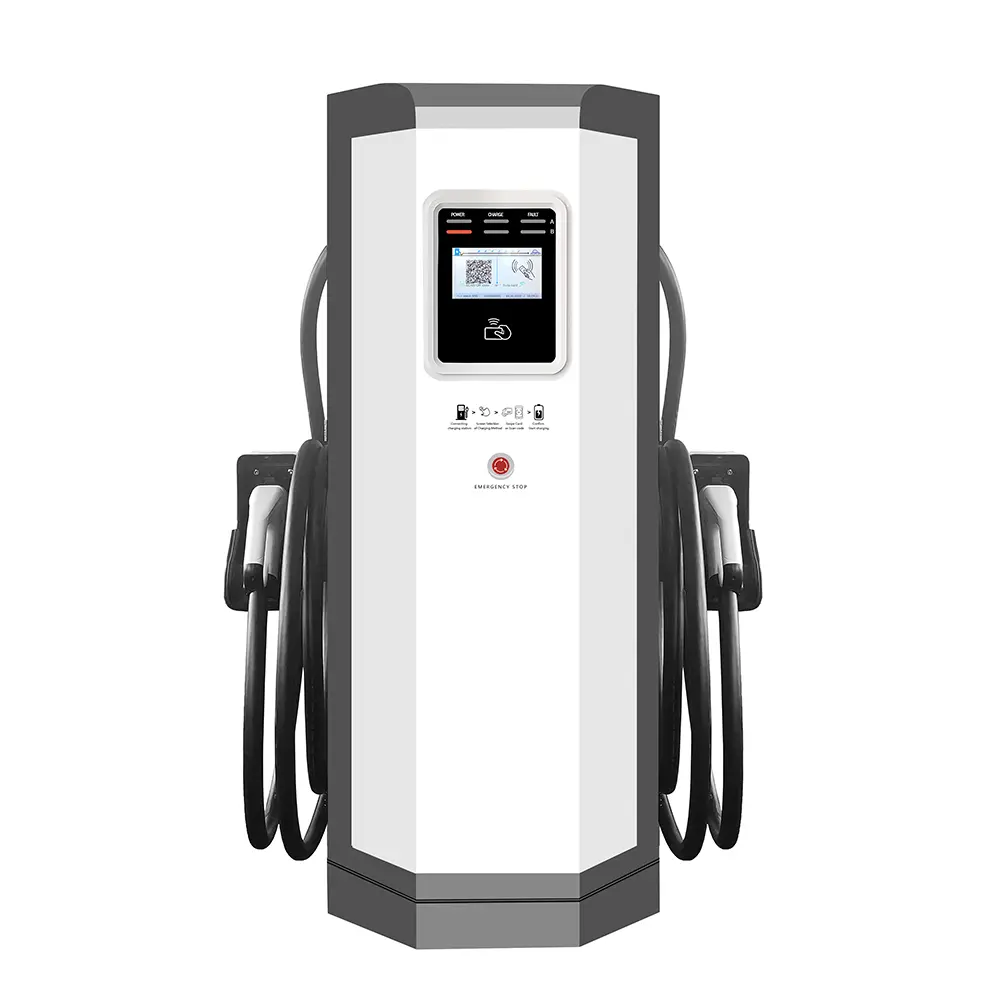

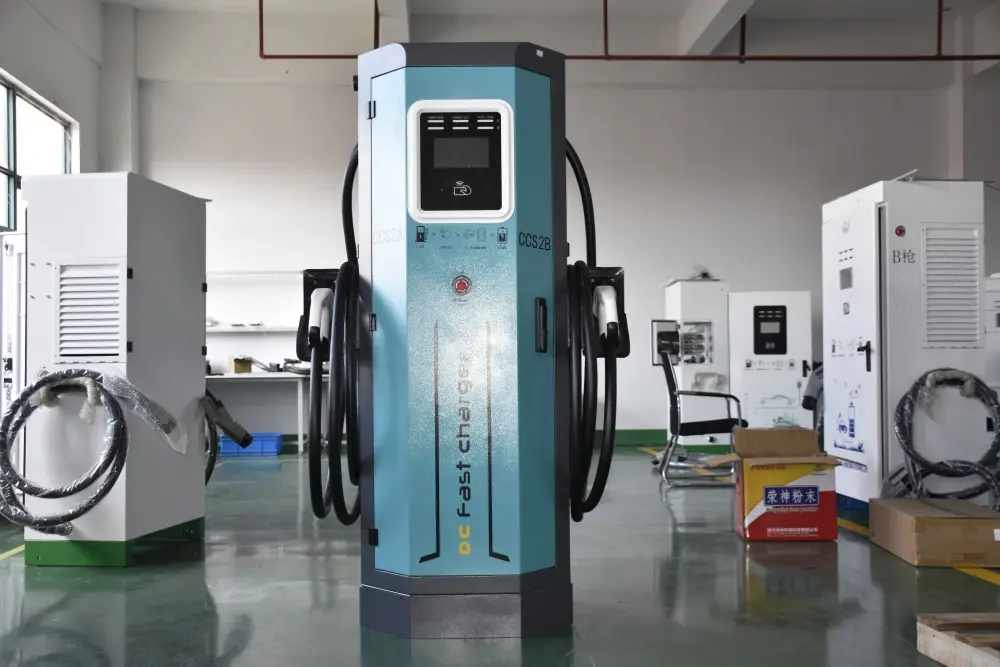

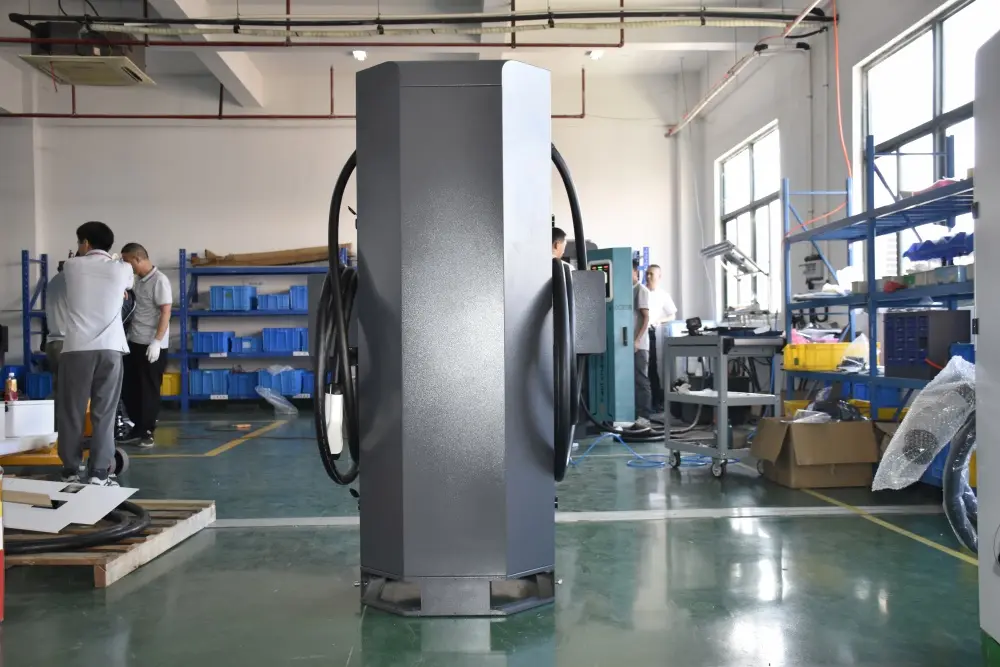

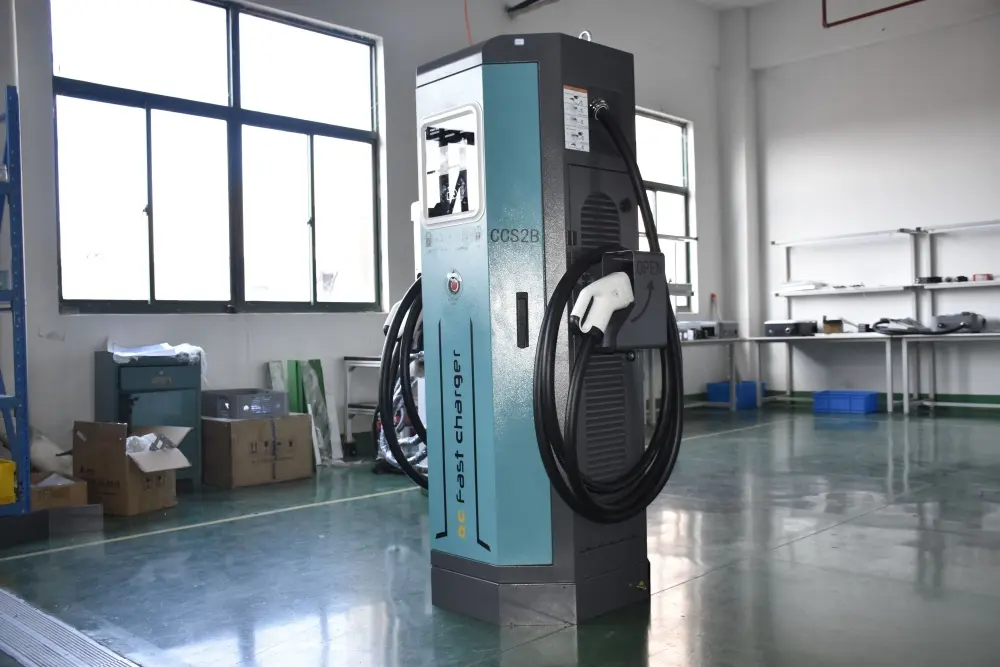

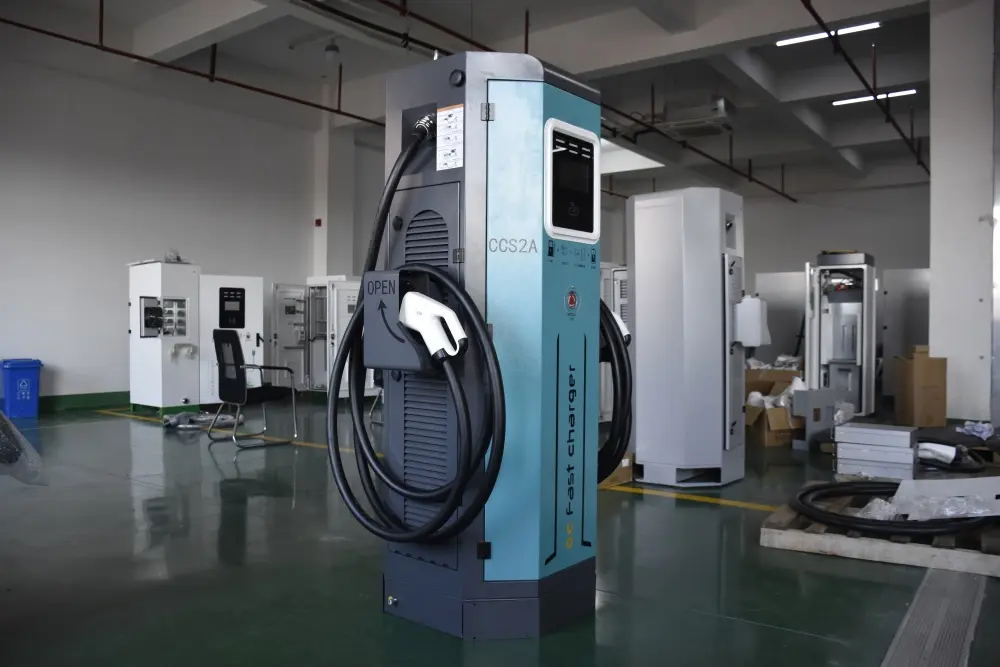

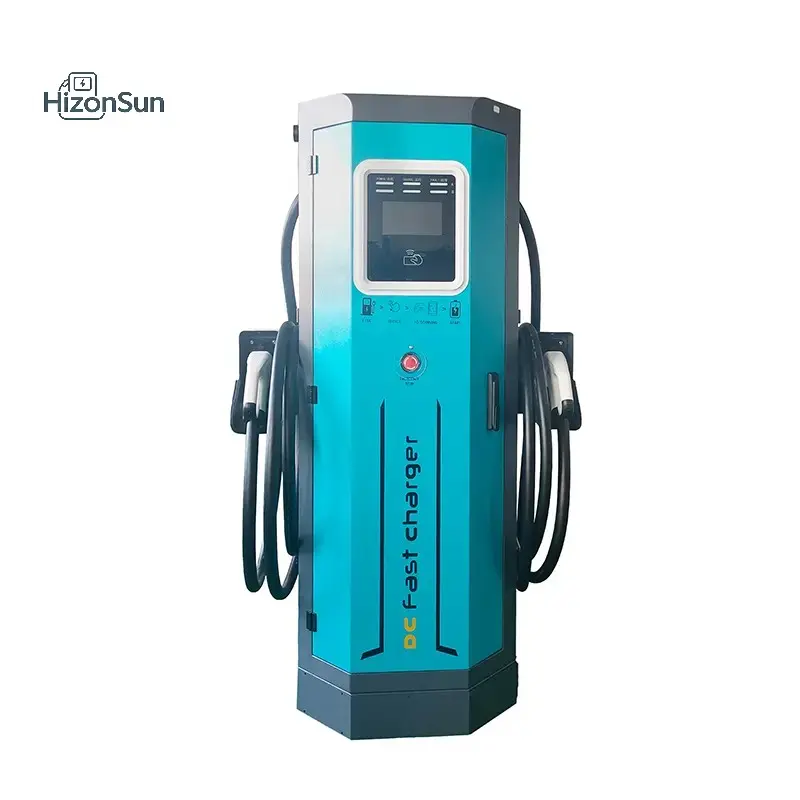

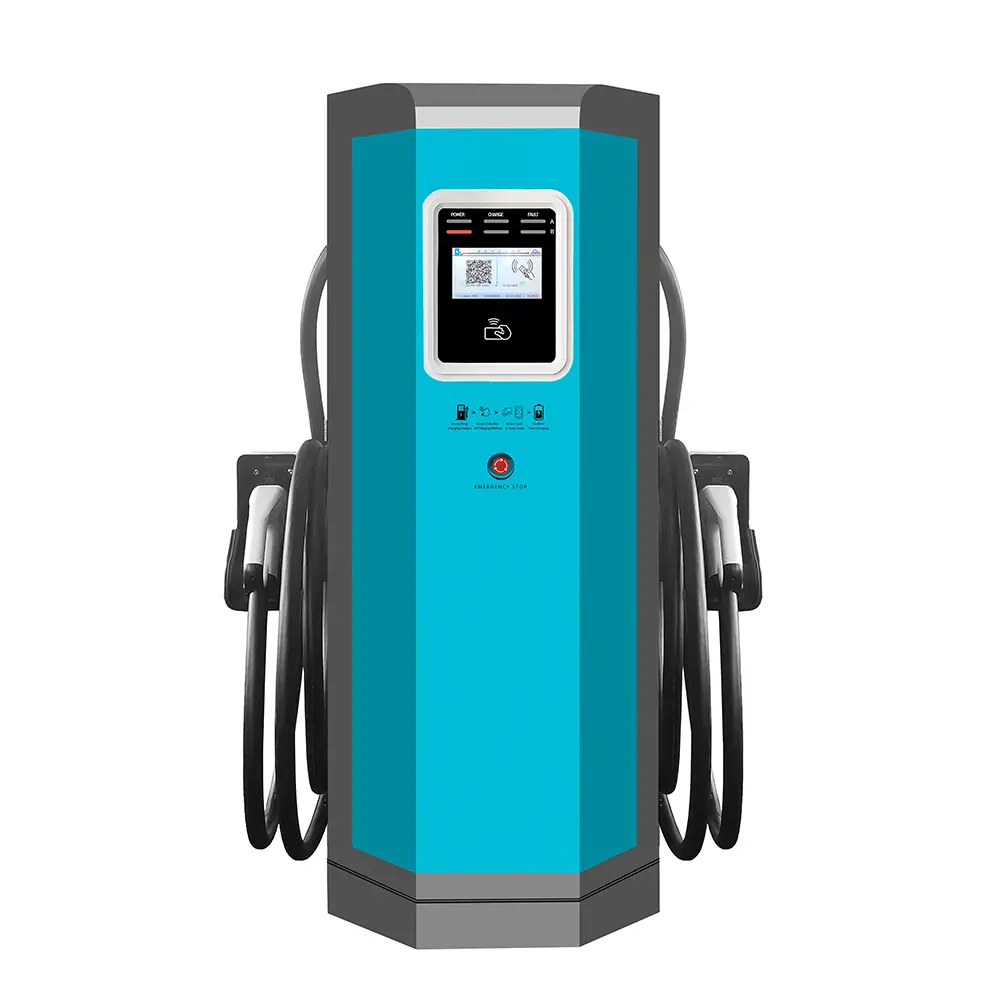

China 60KW-360KW Dual Gun DC EV Charger | Octagonal Floor-Mounted Fast Charging Station | GB/IEC/UL/CCS2 Factories, Manufacturer
Product Description
Product Video
Core Product Highlights
- Standard Compliance: GB / IEC / UL / CCS2 optional
- Power Range: 60KW, 120KW, 240KW, 360KW
- Structure: Integrated floor-mounted (octagonal cabinet)
- Connector: Dual gun
- Functions: RFID start/stop, RFID billing, QR code billing
- Display: 7-inch LCD screen for real-time charging data & status
- Protection: IP54 waterproof & dustproof, all-weather outdoor use
Key Features
1. Ultra-High-Power DC Fast Charging: Wide output voltage 200–1000V, maximum current up to 365A, greatly reduces charging time for passenger cars, buses, trucks, and logistics vehicles.
2. Dual-Gun High-Efficiency Design: Dual charging guns support simultaneous or sequential charging, maximizing equipment utilization and site throughput.
3. Heavy-Duty Octagonal Integrated Cabinet: Rugged all-in-one floor-mounted structure, strong stability, excellent heat dissipation, suitable for 24/7 commercial outdoor operation.
4. Intelligent Human-Machine Interaction: 7-inch HD LCD clearly shows charging capacity, voltage, current, time, billing details, and fault codes.
5. Flexible Charging & Payment Modes: Charging: Auto full, fixed power, fixed amount, timed charging. Payment: RFID card + QR code payment.
6. Stable & Reliable Performance: IP54 protection, operating temperature -25℃~+50℃, anti-surge, anti-interference, safe and durable.
7. Smart Cloud Connectivity (Optional): Built-in 4G/Ethernet, compatible with WanCheChong cloud platform for remote monitoring, operation, and data management.
Technical Specifications
| Parameter | Unit | Standard Value |
|---|---|---|
| Product Name | — | 60KW–360KW Integrated Floor-Mounted DC EV Charger (Dual Gun, Octagonal) |
| Rated Power | KW | 60KW / 120KW / 240KW / 360KW |
| Dimension | mm | 750(L) × 620(W) × 1700–1850(H) |
| Input Voltage | V | AC380V |
| Input Frequency | Hz | 45–65Hz |
| Output Voltage | V | 200–1000V |
| Single-Gun Output Current | A | 0–92A / 0–183A / 0–365A |
| Charging Cable Length | m | 5m |
| Installation | — | Integrated floor-mounted |
| Connector | — | Dual gun |
| Charging Modes | — | Auto full / fixed power / fixed amount / timed |
| Payment | — | RFID card / QR code |
| Communication | — | No module / 4G (optional) |
| Management Platform | — | WanCheChong Cloud Platform |
| HMI | — | 7-inch LCD display (optional) |
| Operating Temperature | ℃ | -25℃ ~ +50℃ |
| Operating Humidity | — | 5%–95% RH, non-condensing |
| Working Altitude | m | ≤3000m |
| Protection Grade | — | IP54 |
Application Scenarios
- Public commercial fast charging stations
- Highway service areas & rest stops
- Logistics fleet & heavy truck charging hubs
- Bus & passenger transit stations
- Shopping malls, hotels, enterprise parking
- Government & institutional fleet centers
Why Choose This Charger?
- 60KW–360KW ultra-high-power DC fast charge
- Dual gun improves efficiency & revenue
- Octagonal cabinet: stronger, more durable, better cooling
- IP54 waterproof for 24-hour outdoor use
- GB/IEC/UL/CCS2 global compatibility
- 4G + cloud platform for intelligent operation
Frequently Asked Questions (FAQ)
What charging standards does this DC fast charger support?
It provides multi-standard options including GB/T, IEC, UL, and CCS2 standards, catering to international and domestic electric vehicle charging requirements.
Can the dual charging guns operate at the same time?
Yes, the dual-gun configuration supports simultaneous charging for two vehicles as well as dynamic sequential distribution, optimizing power distribution and charging throughput.
Is the charging pile suitable for severe outdoor environments?
Yes, built with an IP54-rated octagonal heavy-duty cabinet, it delivers robust protection against dust, water, and corrosion across a temperature range of -25°C to +50°C.
What payment and authorization methods are supported?
Users can authorize and pay through RFID card tap-to-start and mobile QR code scans, accompanied by diverse charging mode configurations like auto-full, timed, or fixed amount.
Does it support centralized station backend monitoring?
Yes, optional 4G and Ethernet modules provide seamless connectivity to the WanCheChong Cloud Platform for remote maintenance, real-time diagnostic reports, and automated revenue collection.
