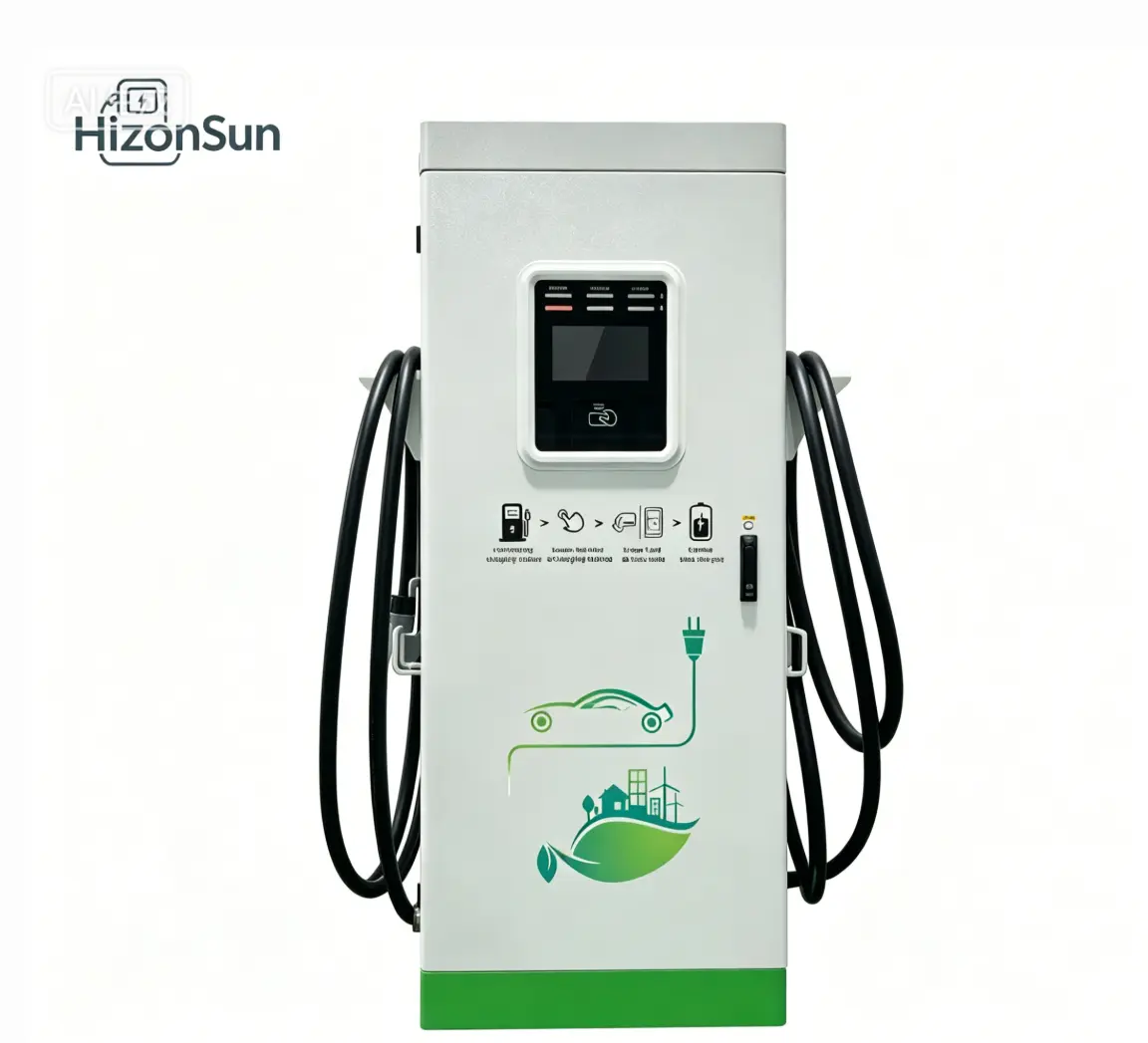

OEM 40KW-180KW Integrated Floor-Mounted DC EV Charger - Dual Gun from China Suppliers and Factory for Fast Charging Solutions Factory, Manufacturer
Product Description
Core Features
High-Power DC Fast Charging
Supports 40KW, 60KW, 120KW, 180KW options, output voltage 200-1000V, maximum current up to 183A.
Dual Gun Configuration
Dual charging guns improve equipment utilization and efficiency, perfect for high-flow commercial sites.

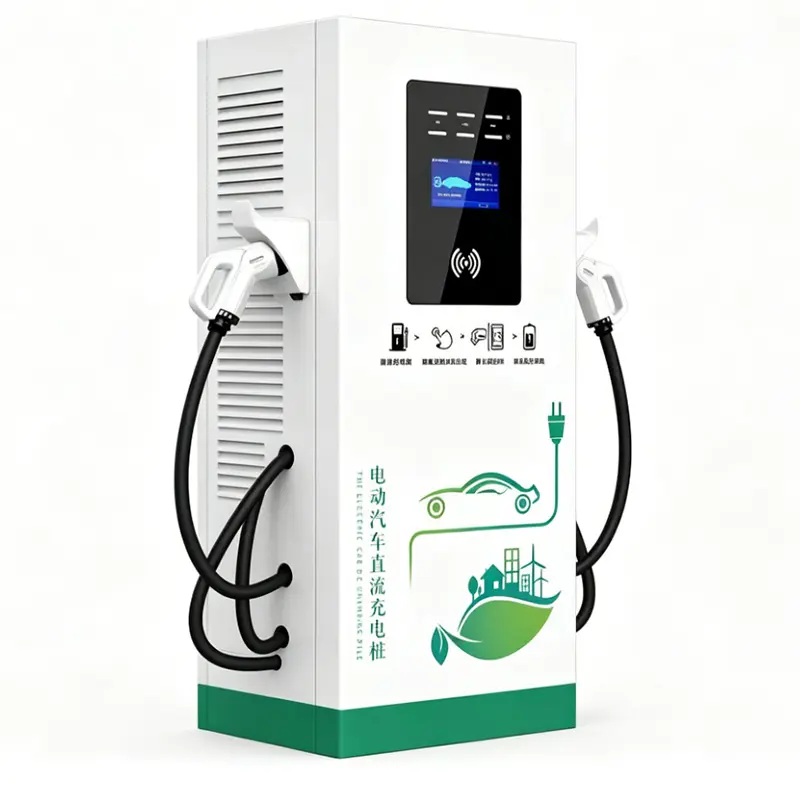

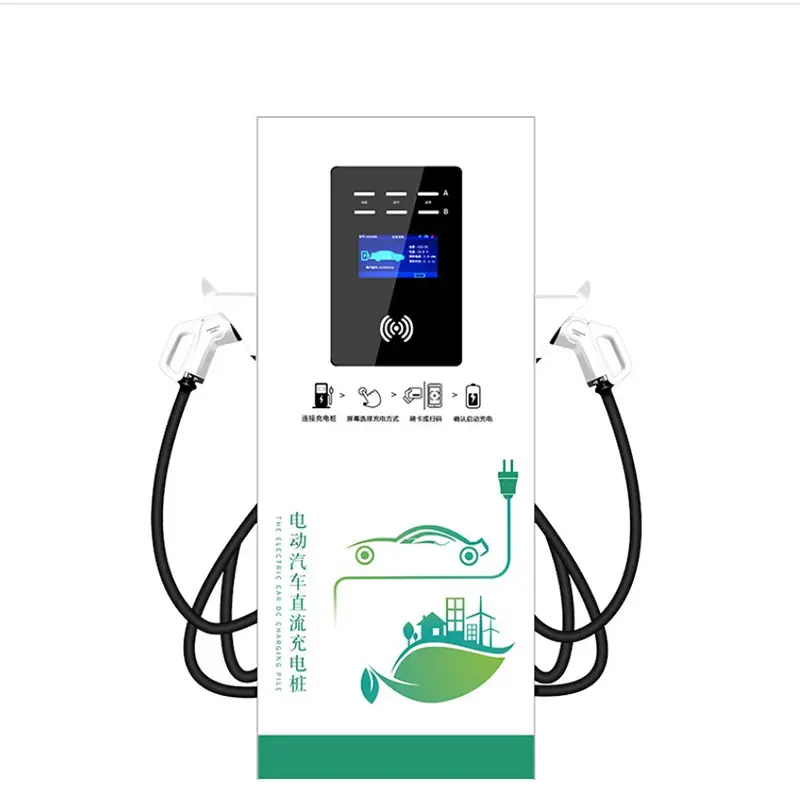

Integrated Floor-Mounted Design
Rugged all-in-one structure with excellent heat dissipation for 24-hour outdoor operation.
Intelligent HMI
7-inch LCD screen displays capacity, voltage, current, time, fault codes, and billing data clearly.
Flexible Payment Modes
Supports auto full charge, fixed power/amount/time modes via RFID card or QR code payment.
Smart Connectivity
Optional 4G module compatible with WanCheChong cloud for remote monitoring and data management.
Technical Specifications
| Parameter | Unit | Standard Value |
|---|---|---|
| Product Name | — | 40KW-180KW Integrated Floor-Mounted DC EV Charger (Dual Gun) |
| Rated Power | KW | 30KW / 60KW / 120KW (40-180KW optional) |
| Dimension | mm | 30KW/60KW: 700×450×1500; 120KW: 700×450×1650 |
| Input Voltage | V | AC380V |
| Output Voltage | V | 200-1000V |
| Single-Gun Output Current | A | 0-46A / 0-92A / 0-183A |
| Protection Grade | — | IP54 |
| Operating Temperature | ℃ | -25℃ ~ +50℃ |
| Management Platform | — | WanCheChong Cloud Platform |
Applications
- Public commercial charging stations
- Highway service areas
- Logistics fleet & bus hubs
- Shopping mall & hotel parking
- Enterprise & government points
Frequently Asked Questions
What is the output voltage range of this DC charger?
The charger provides a wide output voltage range of 200V to 1000V DC, making it compatible with almost all modern electric vehicles, including high-voltage battery systems.
Can the charger handle outdoor weather conditions?
Yes, it features an IP54 waterproof and dustproof rating and operates reliably in temperatures ranging from -25℃ to +50℃, suitable for 24-hour outdoor use.
Does the dual gun configuration support simultaneous charging?
Yes, the dual gun design allows for improved equipment utilization, enabling efficient charging for multiple vehicles in high-traffic commercial scenarios.
What payment methods are supported for commercial use?
The system supports multiple payment and access methods, including RFID card swiping and QR code mobile payments, integrated with the WanCheChong management platform.
Is remote monitoring available for these chargers?
Yes, with the optional 4G communication module, operators can remotely monitor charging status, manage billing data, and perform diagnostics via the cloud platform.
