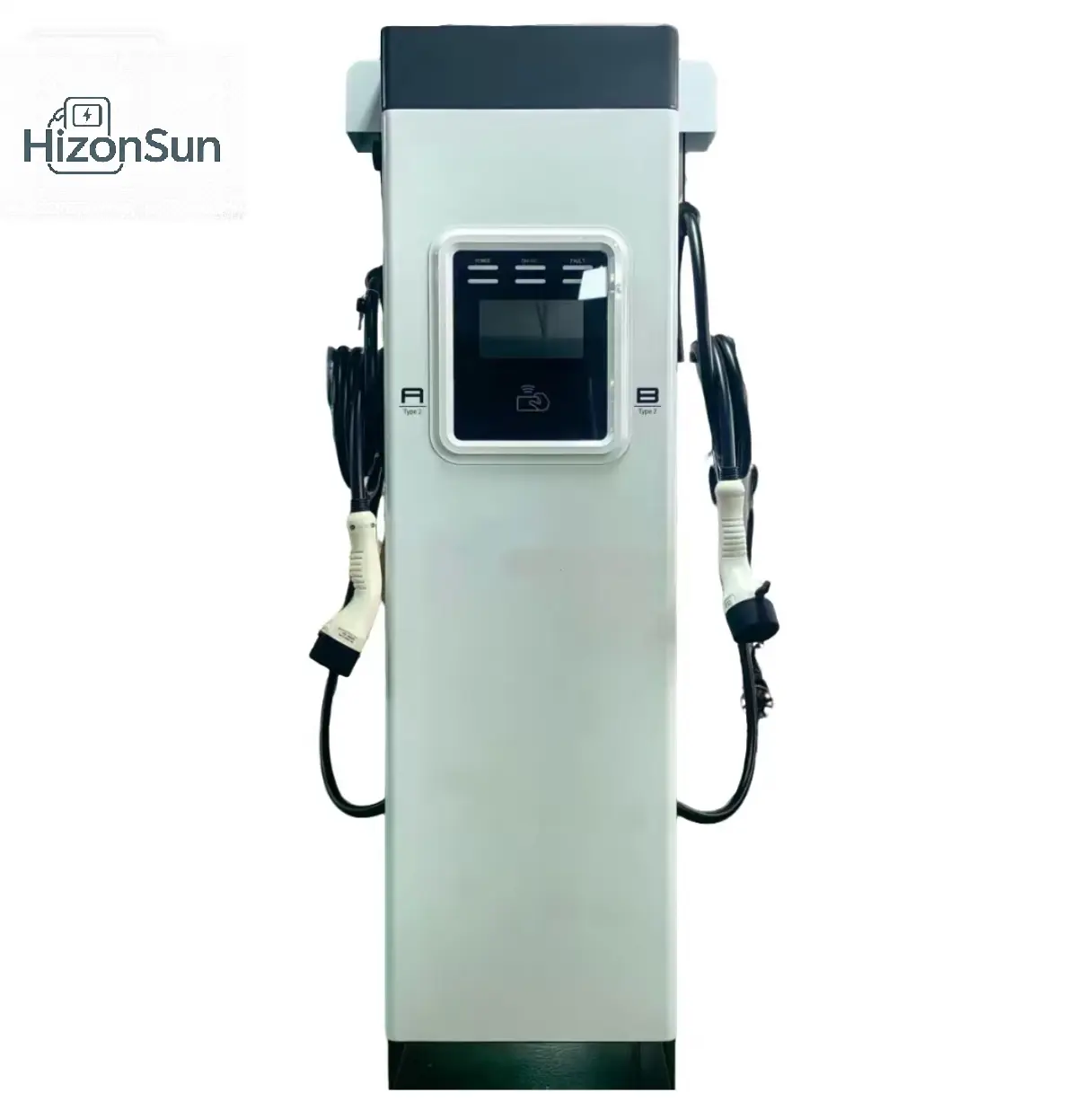

OEM 22-44KW AC Charging Station - Customizable for China Standards by Trusted Suppliers and Factory Suppliers, Manufacturers
Product Description
Key Features
Dual-Gun Charging
Supports simultaneous charging for two EVs with configurable current (16A+16A or 32A+32A).
Smart Communication
OCPP 1.6J protocol compatible, with 4G/Ethernet networking for remote monitoring and management.
User-Friendly Operation
Bright color touchscreen, LED indicators, and multiple charging modes (auto full, fixed power/amount/time).
Durable Build
IP54 protection level, designed for outdoor use with forced air cooling and ≥95% efficiency.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | JSAC-22-44KW-Y-B-2-H |
| Rated Power | 22-44KW |
| Installation | Vertical (Floor-Standing) |
| Input Voltage | 380VAC ±15% |
| Output Current | 16A+16A, 32A+32A |
| Protocol | OCPP 1.6J |
| Efficiency | ≥95% |
| Networking | Ethernet / 4G |
| Protection | IP54 |
| Environment | -20°C~+50°C; Altitude ≤2000m |
Applications
Commercial Sites: Malls & Public Garages
Fleet Charging: Logistics & Taxi Depots
Residential: Multi-unit Dwellings
Hospitality: Hotels & Restaurants
Why Choose Our Charging Station?
-
Reliable Performance 17520-hour MTBF ensures long-term operation.
-
Global Standards Meets IEC 61851-1 and IEC 62196-2.
-
Scalable Integration OCPP 1.6J integration for easy management.
-
Weather-Resistant Rugged IP54 build for all climates.
Order & Customization
Contact our team today to discuss bulk orders, custom configurations, and installation support. We offer tailored solutions including branding, networking setups, and maintenance packages.
Frequently Asked Questions
What is the maximum power output of this station?
This AC charging station supports a power range of 22KW to 44KW, depending on your specific configuration and grid capacity.
Can it charge two electric vehicles at the same time?
Yes, it features a dual-gun design that supports simultaneous charging with configurable currents of 16A+16A or 32A+32A.
Is the charging station compatible with remote management systems?
Absolutely. It uses the standard OCPP 1.6J protocol and supports both Ethernet and 4G networking for seamless integration with management platforms.
Can this unit be installed outdoors?
Yes, the station is rated IP54 for protection against dust and water, making it suitable for outdoor installation in various weather conditions.
What payment methods are supported for public users?
The station supports multiple user interaction methods, including RFID card swiping and QR code scanning for mobile payments.
