OEM 20KW/30KW/40KW DC EV Charger | Wallbox & Floor-mounted, China Suppliers Factory, GB/IEC/UL Compliant Supplier, Manufacturer
Product Description
Core Features
✓Standard Compatible: GB / IEC / UL optional
✓Power Options: 20KW, 30KW, 40KW

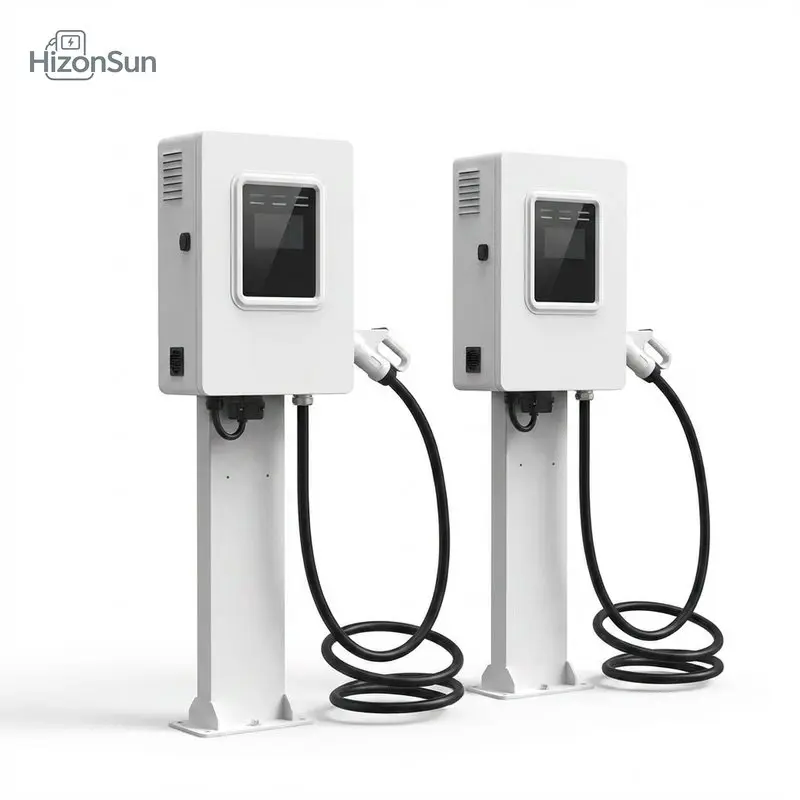

✓Installation: Wall-mounted / Floor-standing column
✓Functions: RFID start/stop, RFID billing, QR code billing
✓Display: 7-inch LCD screen for real-time status
Key Product Benefits
1. High-Efficiency DC Fast Charging
Delivers 20KW–40KW high-power DC output, greatly reducing charging time compared with standard AC chargers.
2. Multi-Standard Compatibility
Supports GB (China), IEC (Europe), UL (US) standards to match global electric vehicle interfaces.
3. Flexible Installation
Available in wall-mounted and floor-standing column designs for home parking lots, communities, and commercial stations.
4. Intelligent Operation & Display
7-inch HD LCD screen clearly shows charging power, voltage, current, energy, time, and fault status.
5. Multiple Payment & Control Modes
Supports RFID card payment and QR code billing; supports automatic full charge, timed, and fixed amount charging.
6. Stable & Reliable Performance
Wide input voltage, strong anti-interference, and IP54 waterproof/dustproof rating for indoor and outdoor use.
7. Smart Connectivity (Optional)
Equipped with 4G communication module to connect to the cloud management platform for remote monitoring.
Technical Specifications
| Parameter | Unit | Standard Value |
| Product Name | — | 20KW/30KW/40KW DC EV Charger |
| Rated Power | KW | 20KW / 30KW / 40KW |
| Dimension | mm | 20KW/30KW: 420×230×620; 40KW: 560×380×200 |
| Input Voltage | V | AC380V |
| Input Frequency | Hz | 45–65Hz |
| Output Voltage | V | 200–1000V |
| Single Gun Output Current | A | 0–40A / 0–46A / 0–60A |
| Cable Length | m | 5m |
| Installation Type | — | Wall-mounted / Floor-standing column |
| Charging Mode | — | Auto Full / Fixed Power / Fixed Amount / Fixed Time |
| Payment Method | — | RFID Card / QR Code |
| Protection Level | — | IP54 |
Suitable Applications
✓Residential community parking lots
✓Commercial and business parking
✓Corporate and fleet charging points
✓Public fast charging stations
✓Highway service areas
Why Choose This DC EV Charger?
✓High-power DC fast charging
✓Multi-standard global compatibility
✓Stable performance & long service life
✓Easy installation & low maintenance
✓IP54 rated for all-weather use
✓Multiple intelligent charging modes
Frequently Asked Questions
How fast can this DC charger charge my EV?
Depending on the power option (20KW-40KW) and your vehicle's battery capacity, this DC charger can typically provide an 80% charge in 1-2 hours, significantly faster than standard AC chargers.
Is this charger compatible with my Tesla or other EV brands?
Yes, we offer optional standards including GB/T, IEC (Type 2), and UL (Type 1) to ensure compatibility with most global electric vehicle brands and interfaces.
Can I install this charger outdoors?
Absolutely. The charger features an IP54 protection rating, making it waterproof and dustproof, suitable for both indoor and outdoor environments like open-air parking lots.
What payment methods can users use?
The charger supports multiple operation modes including RFID card swiping for authorized users and QR code scanning for mobile billing and payments.
Does it support remote management?
Yes, with the optional 4G communication module, the charger can connect to the WanCheChong Cloud Platform for remote monitoring, status updates, and operation management.
What mounting options are available for this EV charger?
The unit offers versatile installation options, supporting both space-saving wall-mounted setups and floor-standing column configurations depending on your site requirements.
