Product Description
Product Composition
The charging pile is mainly composed of a casing, a rear cover, a main control board, a human-machine interaction interface, a display module (optional), a card swipe module (optional), a communication module (optional), an emergency stop switch, a charging interface, charging gun line, gun line hanging board, and other essential components.
Main Features of the Product
Dynamic human-computer interaction equipped with LED status indicators, providing clear visualization of the charging process.
Embedded emergency stop mechanical switch designed to enhance equipment operation safety.
Equipped with GPRS / Ethernet online communication functionality (optional).
Comprehensive protection suite: over-voltage, under-voltage, over-current, short-circuit, leakage, over-temperature, and lightning protection.
Convenient, intelligent appointment charging for scheduled power delivery.
Integrated data storage and intelligent automated fault identification.
Accurate battery metering and identification (optional) ensuring increased operational confidence.
Rainproof and dustproof construction rated to IP55 protection standard, optimal for indoor and outdoor environments.
Ergonomic design allowing simple installation, effortless operation, and streamlined maintenance.
Built-in physical security and anti-theft design protection.
The Main Technical Parameters

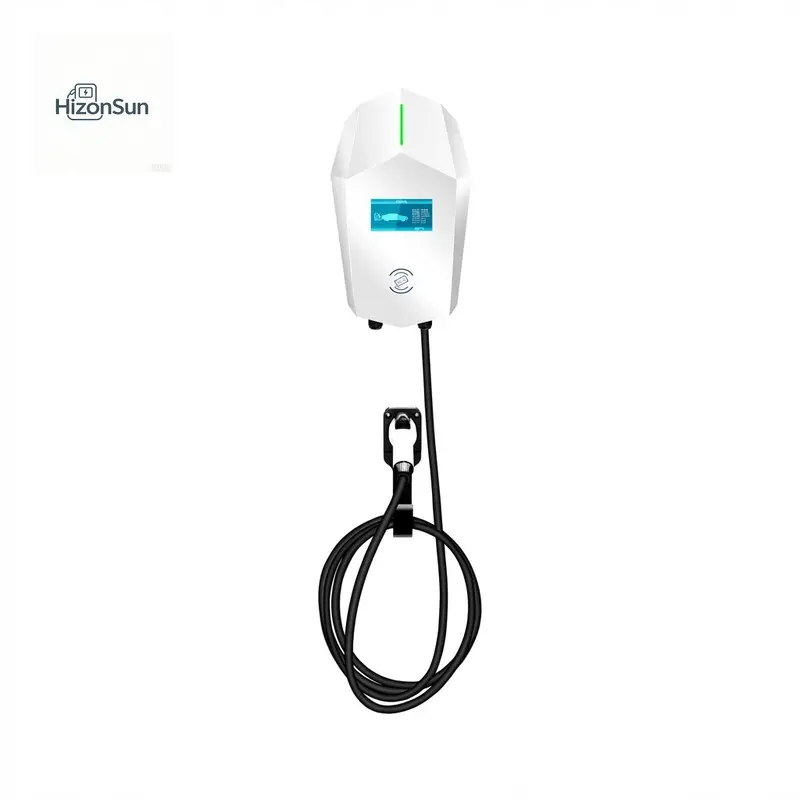

Wall-mounted AC charging pile technical parameters
| Item | 7KW AC Charger | 22KW AC Charger |
|---|---|---|
| Operating Temperature | -30℃ ~ +50℃ | -30℃ ~ +50℃ |
| Humidity | 95% RH (non-condensing) | 95% RH (non-condensing) |
| Input Specification | 240Vac, single-phase, max. 32A, 50/60Hz | 400Vac, three-phase, max. 32A×3, 50/60Hz |
| Wiring System | Line L + Neutral N + Protective Earth PE | Three-phase L + Neutral N + Protective Earth PE |
| Standby Power Consumption | ＜2W (basic version without LCD) | ＜2W (basic version without LCD) |
| Residual Current Protection | DC 6mA RCD | DC 6mA RCD |
| Output Specification | 240Vac, single-phase, 32A, max. 7.4kW | 400Vac, three-phase, 32A×3, max. 22kW |
| Charging Connector | IEC62196-2-2016 Type2 Plug | IEC62196-2-2016 Type2 Plug |
| Protection Functions | Over-current, under-voltage/over-voltage, short-circuit, over-temperature, earthing, unplug protection | Over-current, under-voltage/over-voltage, short-circuit, over-temperature, earthing, unplug protection |
| User Interface | 3-color LED (Power/Charging/Fault), emergency stop, RFID card reading | 3-color LED (Power/Charging/Fault), emergency stop, RFID card reading |
| Communication | Ethernet, 4G | Ethernet, 4G |
| Charging Protocol | Support OCPP 1.6 | Support OCPP 1.6 |

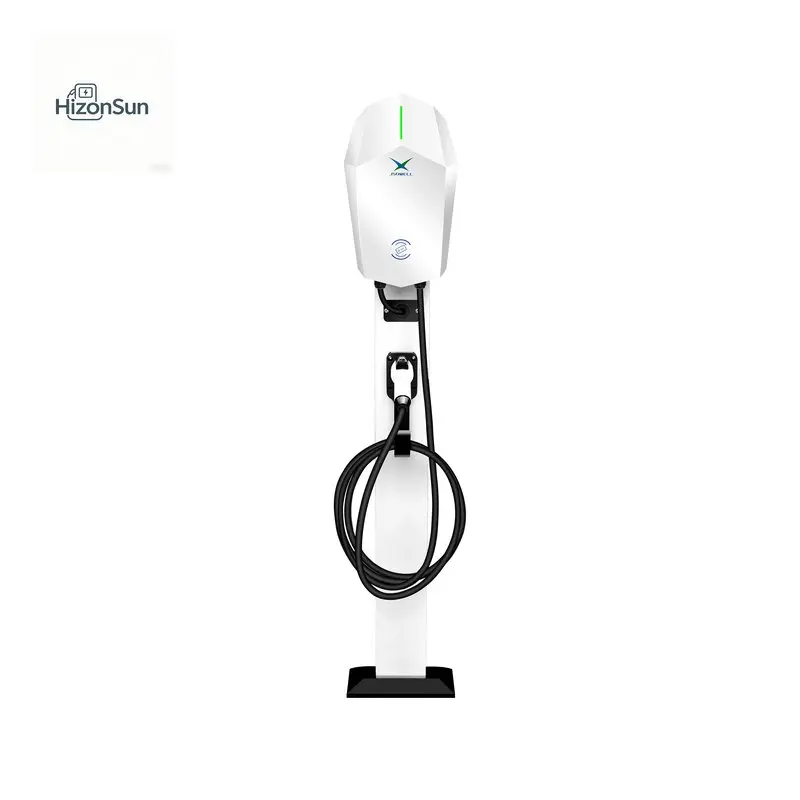

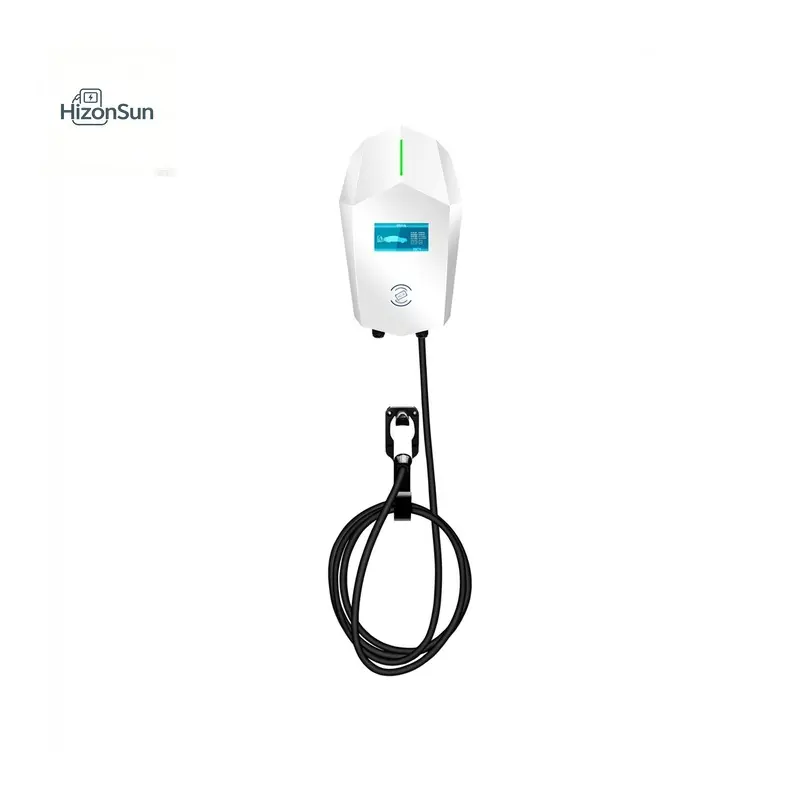

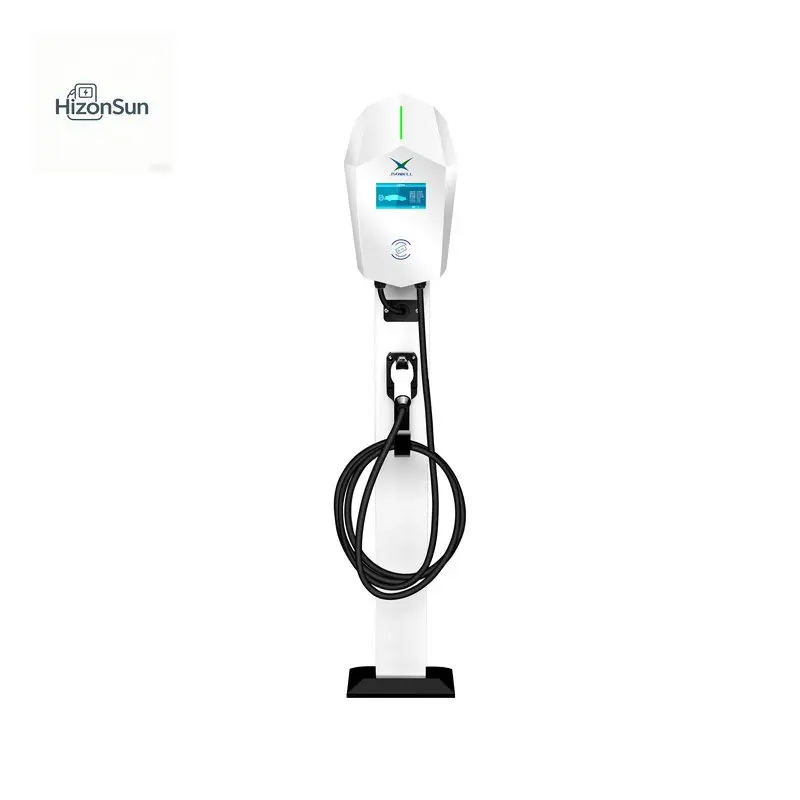

Product Overview & Gallery
Frequently Asked Questions
This series offers two standard power options: a 7.4kW single-phase configuration (240Vac, 32A) and a 22kW three-phase configuration (400Vac, 32A×3), accommodating diverse residential and commercial energy requirements.
Yes. The charger features an IP55-rated rainproof and dustproof structure and operates reliably across an extended temperature range of -30℃ to +50℃, making it suitable for both indoor and harsh outdoor installations.
The unit provides multi-level safety features, including an embedded mechanical emergency stop switch, DC 6mA RCD residual current protection, over-current, over-voltage, under-voltage, short-circuit, over-temperature, earthing, unplug, and lightning protections.
Yes, it supports Ethernet and 4G connectivity alongside the open OCPP 1.6 charging protocol, enabling seamless integration with central charging station management platforms.
Users can interact with the station via RFID card authorization. Operating status is visibly presented through a 3-color LED indicator (Power/Charging/Fault) or an optional integrated display module.
The charging pile is equipped with a standard IEC62196-2-2016 Type 2 plug, providing broad compatibility with European and international electric vehicle models.
