Product Description
Core Product Specifications
- ✓ Regional Standards Compatibility: GB (China), IEC (Europe), UL (North America), JIS (Japan), and Tesla versions available
- ✓ Power Options: 3.5KW, 7KW, 11KW, 21KW (22KW for IEC standard)
- ✓ Mounting Types: Wall-mounted (wallbox) and floor-mounted (freestanding)
- ✓ Core Functions: Plug & Charge, RFID card start/stop, RFID card billing, networked QR code charging
- ✓ User-Friendly Design: Equipped with an optional 4.3-inch LCD display; single charging gun delivers max 7kW per hour.
Key Features
1. Intuitive Status Monitoring: 4.3-inch LCD display (optional) with LED status indicators.
2. Smart Connectivity: Supports Ethernet & 4G network connectivity for remote control.
3. Comprehensive Safety: Built-in over-voltage, short circuit, residual current, and lightning protection.
4. Intelligent Diagnostics: On-board data storage and fault diagnosis for easy maintenance.
5. High-Precision Metering: Accurate energy metering with grade 1.0 or higher meter.
6. All-Weather Durability: IP54 waterproof and dustproof rating for indoor/outdoor use.
7. Hassle-Free Operation: Designed for easy installation and low-cost maintenance.
8. Anti-Theft Security: Integrated design to protect from unauthorized removal.
Product Components
The EV-ONE AC EV Charger kit comes complete with all essential parts for installation:
- Main charger unit
- Mounting backplate
- Charging gun and cable
- Full installation accessory kit
Technical Specifications
| Parameter Item | Unit | Standard Value |
|---|---|---|
| Product Name | - | EV-ONE AC Electric Vehicle Charger |
| AC Input Voltage | V | GB: 220V/380V±20%; IEC: 230V/400V±20%; UL: 240V±20% |
| AC Power Frequency | Hz | 50Hz±1Hz |
| Maximum Output Power | KW | GB: 7KW/21KW; IEC: 7KW/22KW; UL: 7KW/11KW |
| Rated Output Current | A | GB: 32A/32A*3; IEC: 32A/32A*3; UL: 32A/48A |
| Residual Current Device (RCD) | mA | ≤30mA (Type A) |
| Mechanical Strength | J | 0.7 |
| Ingress Protection (IP) Rating | - | IP54 |
| Energy Meter Grade | - | ≥1.0 Class |
| Human-Machine Interface | - | 4.3-inch LCD display (optional) |
Product Appearance & Component Breakdown
1. M6×15 stainless steel screws
2. Fixed mounting plate
3. Mounting backplate
4. Card swiping area
5. Authorized charging function
6. LED status indicators
2. Fixed mounting plate
3. Mounting backplate
4. Card swiping area
5. Authorized charging function
6. LED status indicators
7. Charging gun
8. Charging cable
9. TYPE2 AC inlet
10. M3.5×20 screws
11. M10×60 expansion bolts
12. Column mounting base
8. Charging cable
9. TYPE2 AC inlet
10. M3.5×20 screws
11. M10×60 expansion bolts
12. Column mounting base
Floor-Mounted Column Installation Guide
Step 1: Concrete Foundation - Pour C25 concrete (400×250mm), 40cm below and 20cm above ground.
Step 2: Column Securing - Fasten column to foundation using 4×M10×60 expansion bolts.
Step 3: Backplate Installation - Attach backplate to the column using M6×15 screws.
Step 4: Wiring Connection - Route AC cable and connect L, N, and PE terminals.
Step 5: Grounding Verification - Ensure device is reliably earthed for safety.

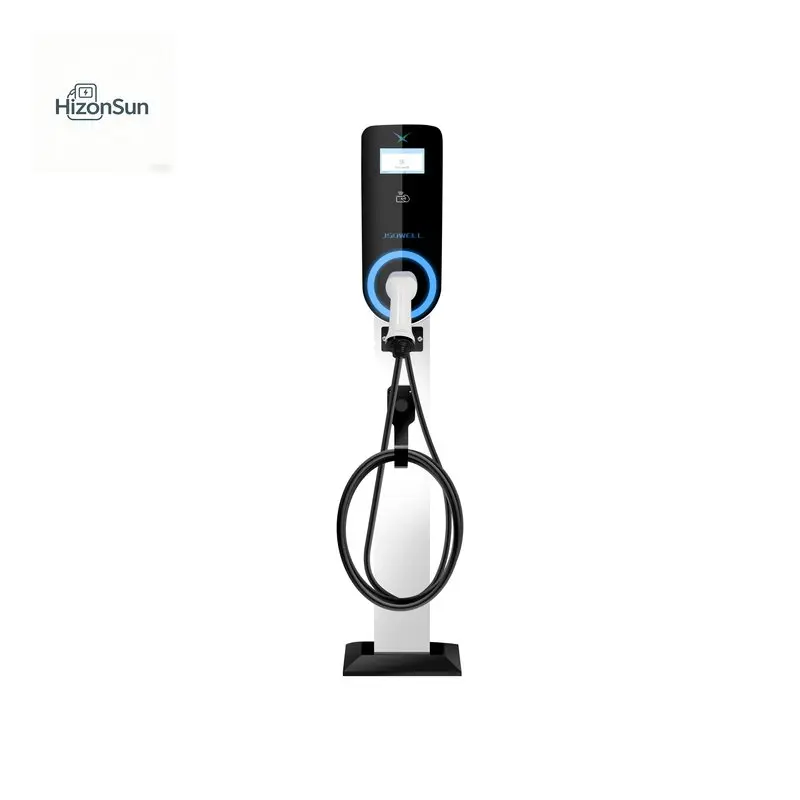

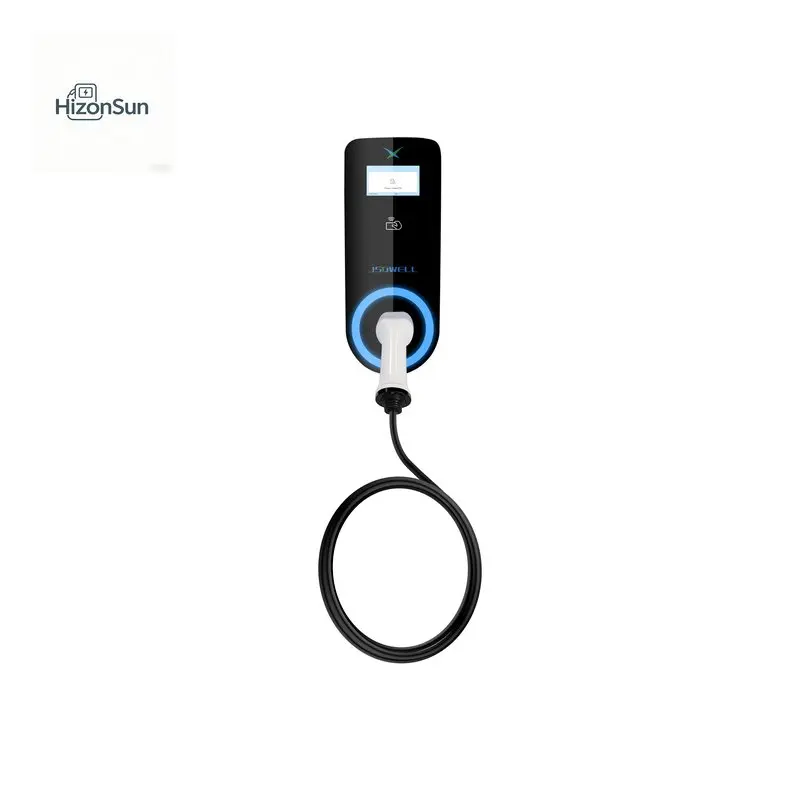

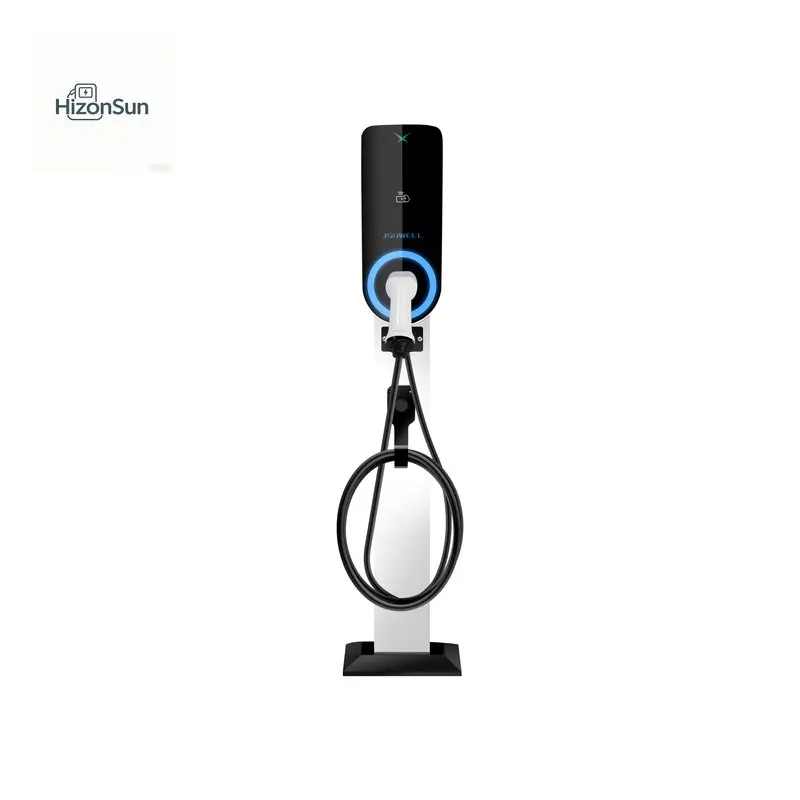

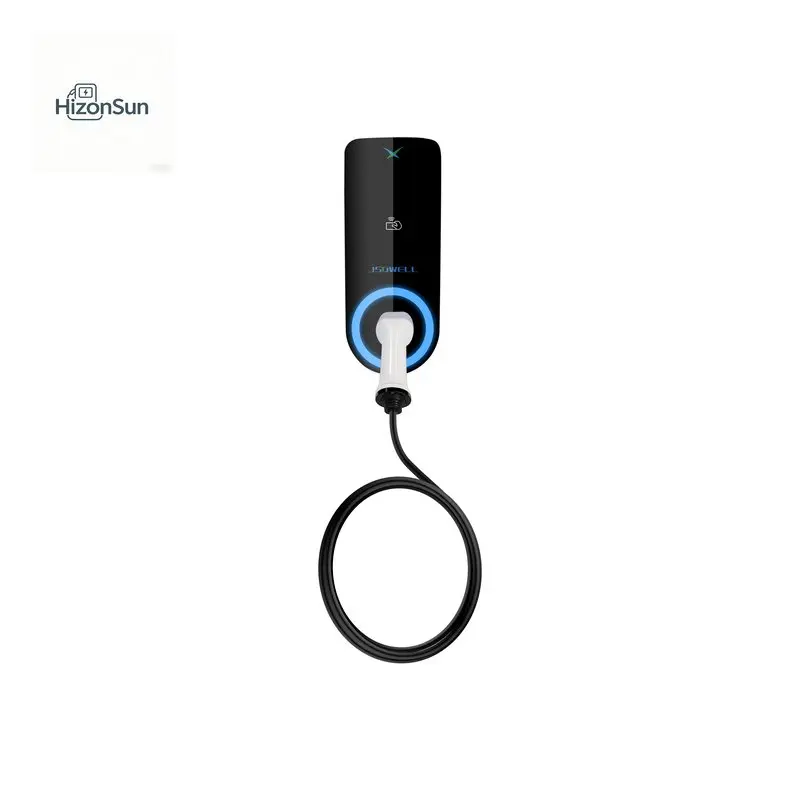

Product Gallery
Frequently Asked Questions
Q1: Which charging standards does the EV-ONE support?
The EV-ONE is compatible with GB (China), IEC (Europe), UL (North America), JIS (Japan), and Tesla standards, making it a versatile choice for global markets.
Q2: What are the available power output options?
Depending on your requirements and regional standards, you can choose from 3.5KW, 7KW, 11KW, or 21KW/22KW power options.
Q3: Is the charger suitable for outdoor installation?
Yes, the device features an IP54 waterproof and dustproof ingress protection rating, ensuring durable performance in both indoor and outdoor environments.
Q4: How can users pay for or start the charging process?
The charger supports multiple methods including Plug & Charge, RFID card start/stop, and networked QR code payments via Ethernet or 4G connectivity.
Q5: What safety protections are included?
The EV-ONE includes comprehensive protection against over-voltage, under-voltage, over-current, short circuits, residual current (Type A RCD), over-temperature, and lightning.
Q6: Can the charger be mounted on the floor?
Yes, it supports both wall-mounted (wallbox) and floor-mounted (freestanding) configurations. For floor mounting, a dedicated column and concrete foundation are used.
