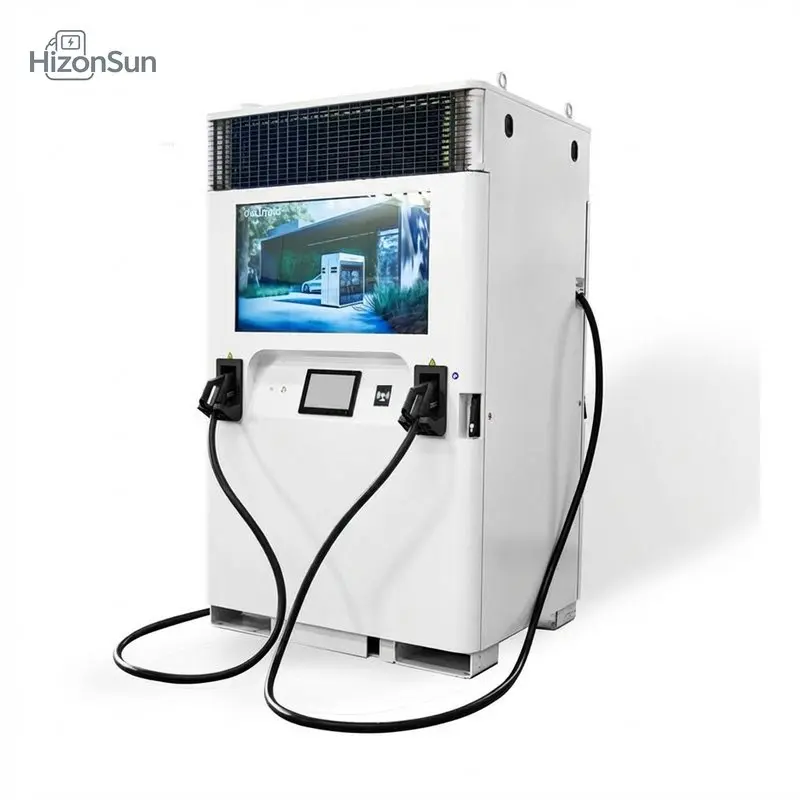

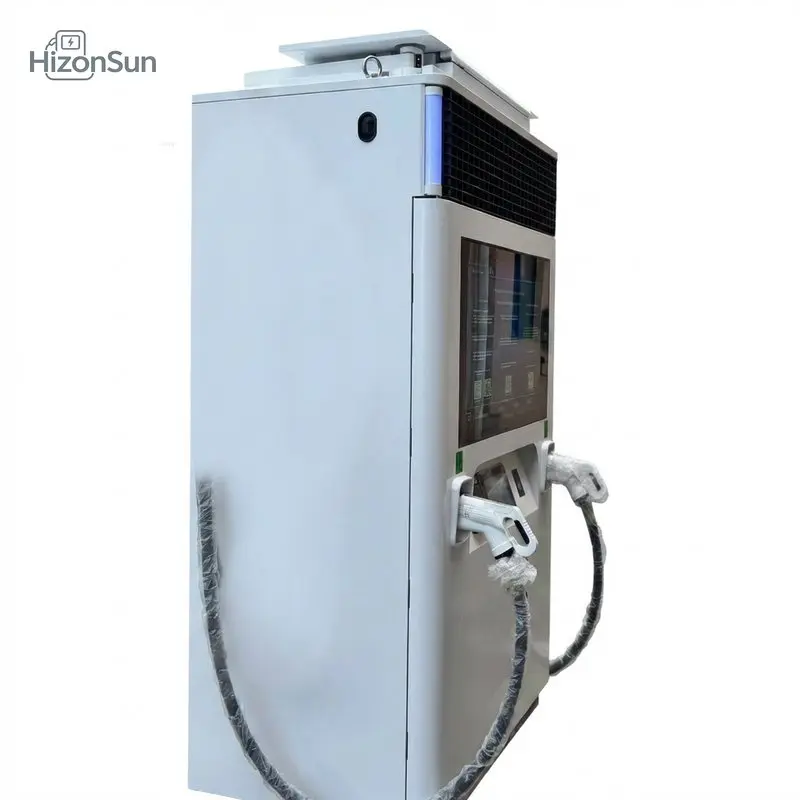

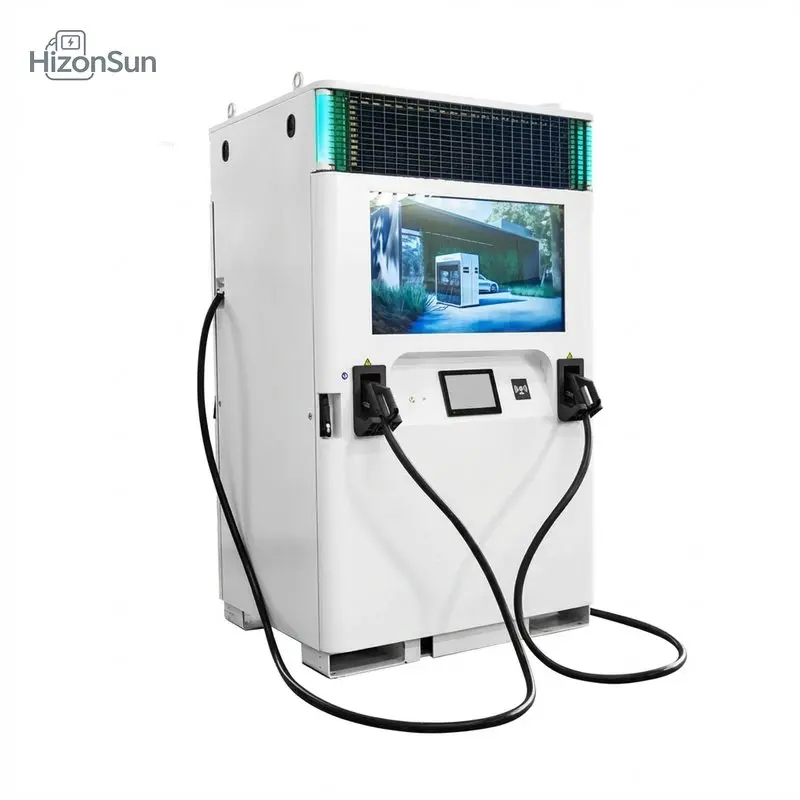

ODM 100KWh & 200KWh Energy Storage Integrated Charging Pile – Solar ESS + EV Charging All-in-One Factory, Manufacturer
Product Description
Key Features & Benefits
No high-power grid connection required, suitable for parking lots, remote areas, construction sites, and solar-powered locations.
Supports simultaneous charging for two EVs, with compatibility for global standards (CCS1/CCS2/GB/T/CHAdeMO).
100% LiFePO4 battery pack with long cycle life, high thermal stability, and zero risk of thermal runaway.
Built-in 7-inch touchscreen with WiFi/Bluetooth/APP control, supporting OCPP1.6J protocol for seamless backend integration.
IP54 protection grade, operating temperature range from -40°C to 60°C, suitable for outdoor use in harsh climates.
Supports automatic charging, fixed power, fixed amount, and fixed time charging options (optional).
Technical Specifications (100KWh vs 200KWh)
Parameter |
100KWh Model |
200KWh Model |
Battery Capacity |
100KWh |
200KWh |
Battery Type |
Lithium Iron Phosphate (LFP) |
Lithium Iron Phosphate (LFP) |
Input Voltage |
AC380V |
AC380V |
Output Voltage |
DC200-1000V |
DC200-1000V |
Max Output Current |
0-200A |
0-250A |
Max Output Power |
60KW |
120KW |
Input Current |
0-100A |
0-130A |
Operating Temperature |
-10°C ~ 60°C |
-40°C ~ 60°C |
Protection Grade |
IP54 |
IP54 |
Product Weight |
≈1200kg |
≈2800kg |
Product Size (L*W*H) |
1940*1100*1200mm |
2600*1350*1600mm |
Charging Gun Standard |
GB/T, CCS1, CCS2, CHAdeMO |
GB/T, CCS1, CCS2, CHAdeMO |
Communication Protocol |
WiFi/Bluetooth/APP |
WiFi/Bluetooth/APP, OCPP1.6J (optional) |
Cooling Method |
Air Cooling |
Air Cooling |
Charging Connector Compatibility
-
CCS1 (US Standard): For North American EVs
-
CCS2 (EU Standard): For European EVs
-
GB/T (Chinese Standard): For domestic EVs
-
CHAdeMO (Japanese Standard): For Japanese EVs

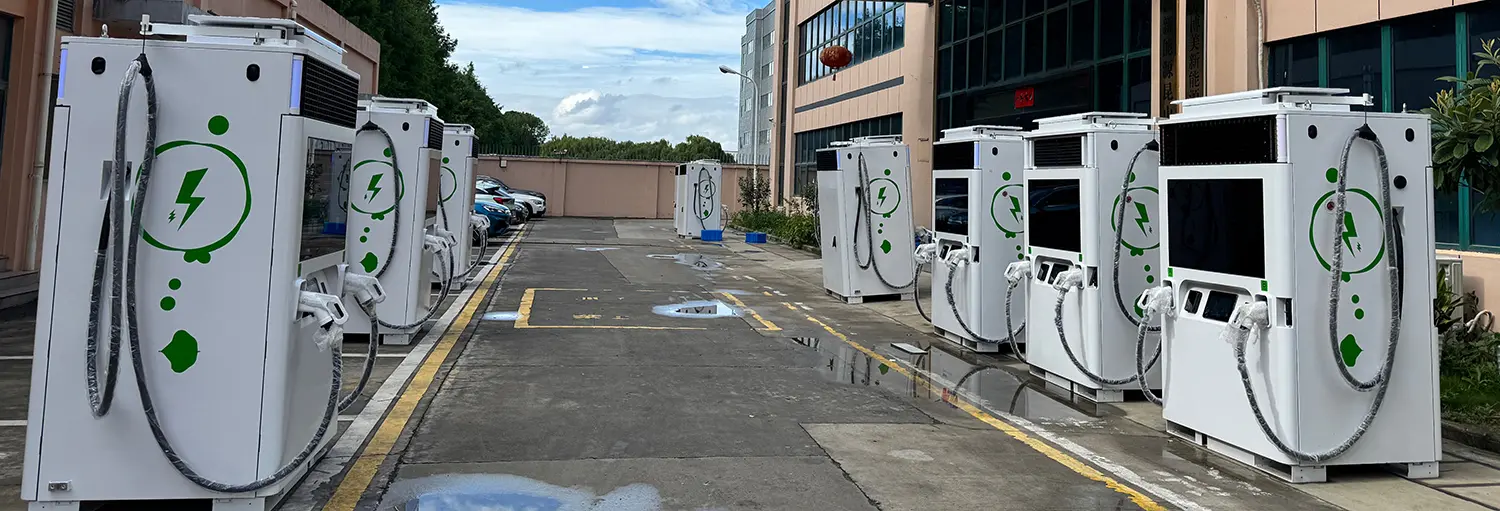

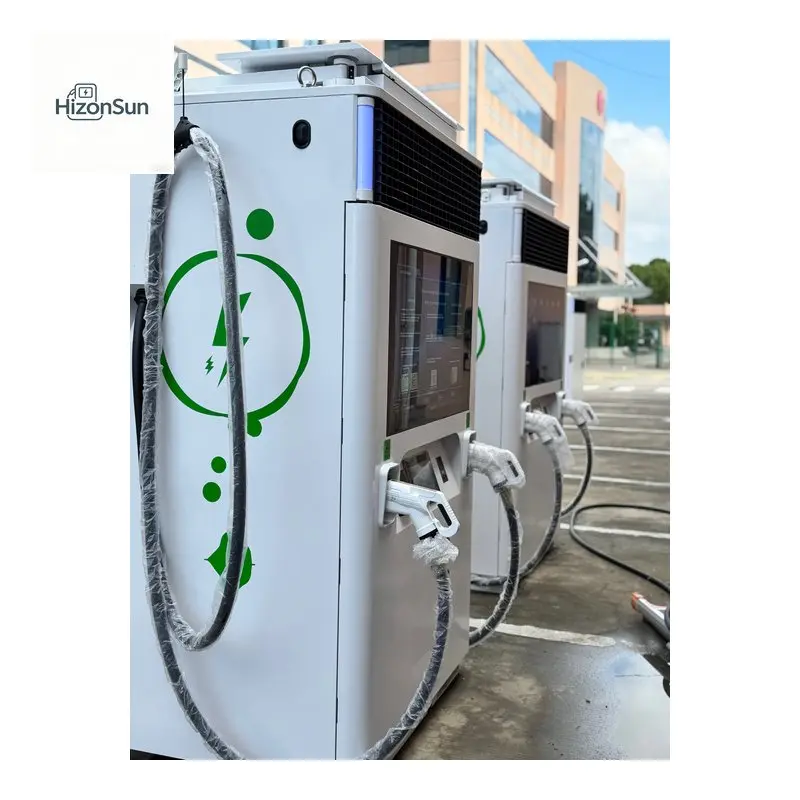

Applications & Use Cases
-
Solar-Powered Charging Stations: Integrate with solar panels to store excess energy and charge EVs during peak hours
-
Remote/Off-Grid Locations: Construction sites, rural parking lots, and industrial areas with limited grid power
-
Commercial Parking Lots: Shopping malls, hotels, and office buildings without high-power grid upgrades
-
Emergency Charging Services: Temporary charging support for EV events, road trips, and power outages
-
Fleet Charging: Logistics companies, taxi fleets, and delivery vehicles needing fast, reliable charging
Why Choose Our Energy Storage Charging Pile?
-
1. Cost-Effective Solution: Avoid expensive grid expansion and transformer upgrades
-
2. 24/7 Charging Availability: Store energy during off-peak hours or from solar, deliver fast charging anytime
-
3. Scalable Design: Modular structure allows easy capacity expansion from 100KWh to 200KWh+
-
4. Remote Monitoring & Management: Real-time data tracking, fault diagnosis, and firmware updates via APP
-
5. Compliance & Safety: Meets global safety standards with multiple protection mechanisms (over-voltage, over-current, over-temperature, short-circuit)
FAQs
A: Yes, our 100KWh/200KWh models support integration with solar ESS systems, allowing you to store solar energy and use it for EV charging.
A: The system round-trip efficiency is over 90%, with DC fast charging efficiency exceeding 95%.
A: Yes, it has an IP54 protection grade, making it dustproof and waterproof for outdoor installation.
A: Absolutely! We support customization for all global standards (CCS1/CCS2/GB/T/CHAdeMO) to meet your regional requirements.
A: The system provides built-in WiFi, Bluetooth, and APP control, along with optional support for the OCPP1.6J protocol for seamless integration into third-party backend management systems.
