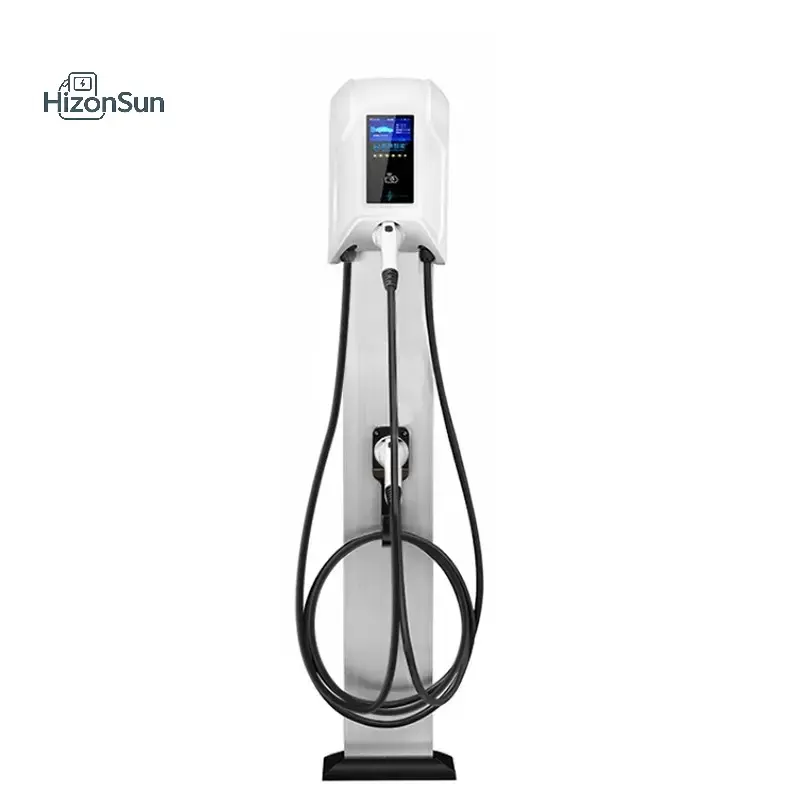

China China AC EV Charger | 3.5KW-21KW Dual Gun Charging Station | Supplier & Factory Direct, IP54 Waterproof Factories, Supplier
Product Description
Core Product Specifications
-
✓
Standard Compliance: Fully compatible with Chinese GB national standards
-
✓
Power Options: 3.5KW, 7KW, 11KW, 14KW, 21KW
-
✓
Mounting Types: Wall-mounted (wallbox) and floor-standing (freestanding)
-
✓
Core Functions: Plug & Charge, RFID card, Networked QR code
-
✓
Dual Gun Capability: 7KW/14KW models support simultaneous charging
Key Features
1. GB National Standard Compliance
Fully meets Chinese EV charging standards for perfect compatibility.
2. Flexible Dual Gun Charging
Simultaneous charging for two vehicles to maximize efficiency.
3. Versatile Mounting Options
Adaptable to wall-mounted or floor-standing installation needs.
4. Intelligent Operation
Plug & Charge with optional 4.3-inch LCD real-time monitoring.
5. Cashless Payments
Supports IC cards and QR code payments for private or commercial use.
6. Comprehensive Safety
Built-in Type A RCD (≤30mA) and multi-layer electrical protection.
7. High-Precision Metering
Grade 1.0 energy meter for accurate consumption tracking.
8. All-Weather Durability
IP54 rated protection for reliable indoor and outdoor use.
9. Easy Maintenance
Modular design with on-board fault diagnosis.
Product Components
The AC EV Charger kit comes complete with all essential parts for standard installation:
-
1
Main charger unit (single/dual gun configuration)
-
2
Mounting backplate (wall) / column (floor)
-
3
Charging gun(s) and matched cables
-
4
Full installation accessory kit
-
5
User manual and qualification certificate
Technical Specifications
| Parameter Item | Unit | Standard Value |
|---|---|---|
| Product Name | - | AC Electric Vehicle Charger |
| AC Input Voltage | V | AC220V±20% |
| AC Power Frequency | Hz | 50Hz±1Hz |
| Maximum Output Power | KW | 7KW / 14KW |
| Rated Output Current | A | 32A |
| Residual Current Device (RCD) | mA | ≤30mA (Type A) |
| Mechanical Strength | J | 0.7 |
| EFT / Surge Immunity | - | Level 3 |
| Number of Charging Guns | - | Single gun / Dual gun |
| Energy Meter Grade | - | ≥1.0 Class |
| Human-Machine Interface | - | 4.3-inch LCD display (optional) |
| Ingress Protection Rating | - | IP54 |
| Dielectric Strength | V | ≥2000V |
Frequently Asked Questions
Is this charger compatible with my electric vehicle?
Our AC EV charger is fully compliant with Chinese GB national standards, making it compatible with all new energy vehicles that follow these specifications.
What power outputs are available for this model?
We offer multiple power configurations including 3.5KW, 7KW, 11KW, 14KW, and 21KW to suit different charging speed requirements.
Can I charge two cars simultaneously?
Yes, our 7KW and 14KW models support dual-gun configurations, allowing two vehicles to charge at the same time efficiently.
Can this charger be installed outdoors?
Absolutely. The charger features an IP54 waterproof and dustproof rating, making it durable for both indoor and outdoor environments in various weather conditions.
What safety protections are included?
Safety is paramount. The unit includes protection against over-voltage, under-voltage, short circuits, over-temperature, and lightning, plus a Type A RCD (≤30mA).
What are the available payment and start methods?
The charger supports Plug & Charge for convenience, RFID card authentication, and networked QR code payments for commercial applications.
