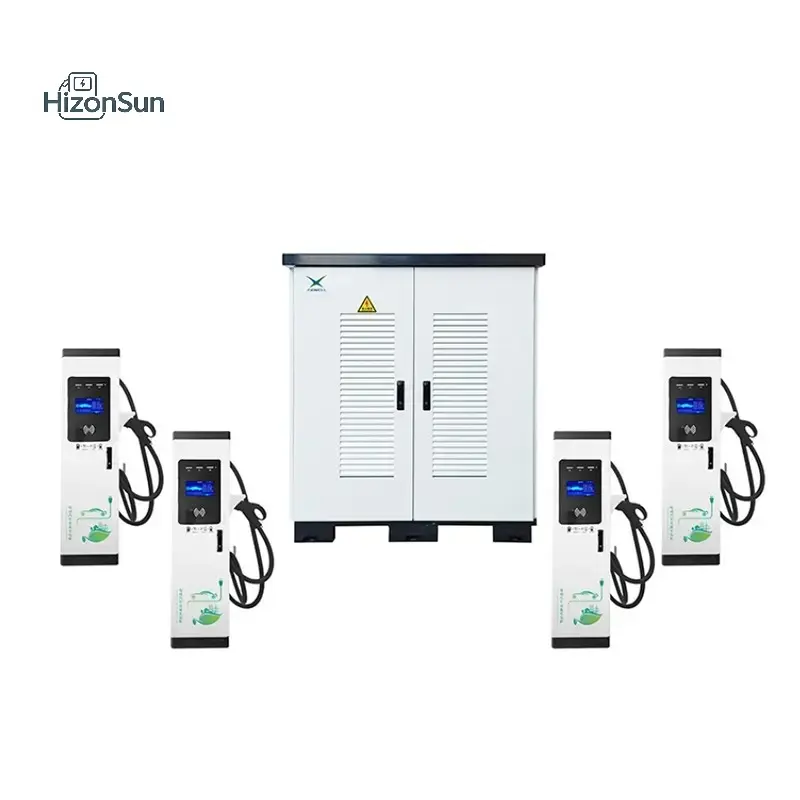

China China 360KW-720KW Split Type DC Fast EV Charging Station | Factory Suppliers | 8-12 Guns, GB/CE/CCS2 Compatible Factories, Supplier
Product Description
Key Features
Technical Specifications
| Model | JSDC-360/400/480/600/720KW |
| Input Voltage | 380V±15%, 3-phase 5-wire (3P+N+PE) |
| Frequency | 50–60Hz |
| Power Factor | ≥0.99 |
| Output Voltage | 200–750VDC |
| Output Current | 0–250A |
| Charging Guns | 8 / 10 / 12 DC fast charging guns |
| Terminal Power | 0/40/80/120/160/180KW per gun |
| Cable Length | 5m (7m/10m customizable) |
| Cooling | Intelligent air cooling |
| Efficiency | ≥96% |
| Noise | ≤65dB |
| Working Temp | -40℃ ~ +60℃ |
| Communication | Ethernet, 4G optional |
| Standards | GB / CE / CCS2 supported |
Applications
Frequently Asked Questions
This series offers a wide range of power outputs including 360KW, 400KW, 480KW, 600KW, and 720KW to meet different high-speed charging requirements.
Depending on the configuration, the system supports 8, 10, or 12 DC fast charging guns, allowing for multiple vehicles to charge at once with intelligent power allocation.
Yes, it supports GB, CE, and CCS2 standards, making it compatible with a vast majority of electric vehicles globally.
Absolutely. The station is designed to work in temperatures ranging from -40℃ to +60℃, featuring intelligent air cooling and comprehensive weather protection.
Users can conveniently pay using RFID cards or by scanning QR codes for integrated billing and mobile payments.
The system operates with a high efficiency of ≥96% and maintains a noise level of ≤65dB, ensuring energy savings and quiet operation.
