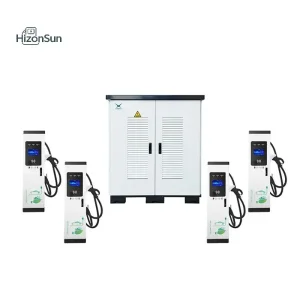

ODM 360KW–720KW Split Type DC Fast EV Charging Station Intelligent Split Charger | 8/10/12 Guns | GB / CE / CCS2 Compatible Suppliers, Manufacturer
View Product Specs

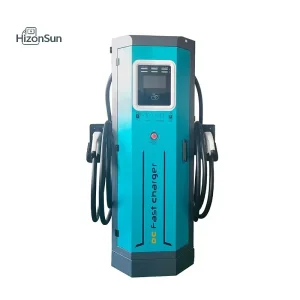

China 60KW-360KW Dual Gun DC EV Charger | Octagonal Floor-Mounted Fast Charging Station | China Suppliers & Factory Factory, Manufacturer
View Product Specs

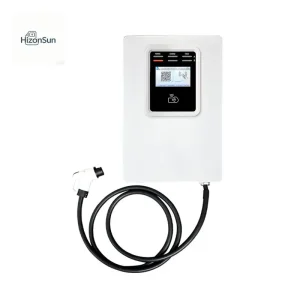

OEM 20KW/30KW/40KW DC EV Charger Suppliers in China | Wall-mounted & Floor-mounted Fast Charging Factory Factories, Suppliers
View Product Specs

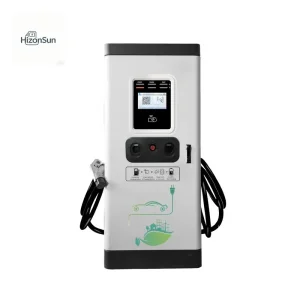

China China Suppliers Factory 60KW-400KW Integrated DC EV Charging Pile | High-Efficiency Commercial Fast Charger Factory, Manufacturer
View Product SpecsJakarta's EV Transition: Overcoming Urban Constraints with Split Architecture
Analyzing grid integration bottlenecks, harsh equatorial operating environments, and the rapid expansion of TransJakarta and commercial electric fleets across Greater Jakarta (Jabodetabek).
The Special Capital Region of Jakarta stands at the precipice of an electric mobility transformation. Driven by Indonesian Presidential Regulation (Perpres) No. 55/2019 and reinforced by ambitious decarbonization roadmaps targeting net-zero emissions, the Provincial Government of DKI Jakarta has mandated aggressive electrification quotas. Most notably, the TransJakarta BRT system plans to transition 100% of its bus fleet—comprising over 10,000 active vehicles—to battery electric buses (e-buses) by 2030. Simultaneously, ride-hailing conglomerates (such as GoTo and Grab), express logistics delivery networks, and commercial private transport operators are aggressively deploying commercial electric fleets across the urban sprawl of Jabodetabek.
However, this unprecedented rapid deployment presents unique, unforgiving engineering challenges that standard monolithic (all-in-one) fast charging stations cannot withstand:
Equatorial Heat & 95% RH
Jakarta’s tropical climate registers ambient temperatures frequently exceeding 36°C with relative humidity levels topping 90–95%. Standard charging piles suffer severe thermal derating and condensation damage within standard electronic enclosures.
Urban Flooding & Subsidence
Seasonal tropical monsoon deluges and urban land subsidence cause severe localized flash flooding across North and Central Jakarta. Ground-level electrical components must be isolated from immersion hazards.
PLN Grid Feeder Volatility
Medium-voltage distribution lines managed by PT PLN (Persero) exhibit transient voltage dips and limited localized substation headroom, demanding active intelligent power matrix distribution to avoid substation trips.
In this demanding urban environment, monolithic chargers fail the operational test. They consume vast real estate, concentrate excessive thermal loads within single cabinets directly exposed to sun and traffic, and lack the flexibility to balance charging power across multiple commercial vehicles simultaneously. The Split-Type Charging Pile architecture solves this crisis by separating the main conversion powerhouse from user-facing satellite dispensers, unlocking enterprise-grade scalability for Indonesian infrastructure developers.
Engineering Architecture: Split-Type Matrix vs. Monolithic DC Chargers
Evaluating power electronics topology, thermal fluid dynamics, dynamic matrix allocation, and land utilization efficiency for megacity applications.
1. Topology Breakdown: Centralized Conversion with Distributed Terminals
Monolithic DC chargers integrate the AC-to-DC rectification stages, power factor correction (PFC) circuitry, isolation transformers, and dispensing cables inside a singular casing. In a congested terminal like Terminal Kampung Rambutan or Cawang in East Jakarta, installing twelve 180kW monolithic units consumes tremendous linear parking curb space, generates unmanageable localized acoustic noise (exceeding 75 dBA at each bay), and forces drivers to maneuver around bulky 1,000kg steel enclosures.
By contrast, our Split-Type High-Power Architecture decouples the system into two distinct subsystems:
- The Central Power Matrix Cabinet (360kW to 720kW): Houses up to twenty-four 30kW or 40kW high-efficiency hot-swappable SiC (Silicon Carbide) power rectifier modules. This central power plant is stationed up to 100 meters away—mounted safely on an elevated, flood-resistant concrete pad or inside a climate-controlled electrical substation room.
- Distributed Slim Dispensing Satellites (Charge Terminals): Compact user-facing pedestals featuring an exceptionally small operational footprint (under 0.15 m² per terminal). These dispensers house solely the metering circuitry, display interfaces, RFID / QR authorization, and contactor mechanisms, allowing dense placement between narrow urban parking stalls.
2. Dynamic Power Matrix Routing (No Stranded Kilowatts)
In standard dual-gun monolithic installations, if a vehicle requests only 40kW from a 120kW charger, the remaining 80kW remains stranded and unusable by other vehicles. In large fleet operations, this results in an abysmal overall site power utilization efficiency (frequently below 45%).
Our intelligent split-type system deploys a high-speed Relay/Contactor Matrix switching array controlled by real-time DSP microcontrollers. Rectification modules are dynamically routed in granular 30kW or 40kW increments to match the active BMS charging curve of each connected vehicle. When an electric bus pulls in with a low state-of-charge (SoC), the matrix dynamically channels up to 360kW or 480kW of boost power to that specific dispenser. As the battery enters its constant-voltage saturation phase and current tapers off, the matrix instantaneously routes the excess capacity to neighboring bays. The result is a consistent site power utilization factor exceeding 92–95%.
| Architectural Parameter | Traditional Monolithic Fast Charger | HizonSun Intelligent Split-Type System |
|---|---|---|
| Footprint at Parking Bay | Large (approx. 0.8m × 0.9m per 2 guns) | Minimalist Satellite (approx. 0.35m × 0.4m) |
| Dynamic Power Allocation | Rigid 50:50 or 60:40 static splits | Dynamic Relay Matrix (granular 30/40kW steps) |
| Flood Protection Strategy | Entire unit exposed to street-level floodwaters | Cabinet elevated remotely; low-voltage terminals |
| Thermal Acoustic Noise at Bay | 70–78 dBA per charger right next to vehicle | Silent passive dispensing; remote power cabinet |
| Modularity & Maintenance | Site shuts down during core component repair | Hot-swappable modules; N-1 redundancy maintains uptime |
| Scalability (Future EV Influx) | Requires full unit excavation & replacement | Add extra dispensers or swap modules up to 720kW |
Localized Engineering, SNI Compliance & PT PLN Integration
Turnkey localization engineered specifically for the regulatory, environmental, and infrastructural reality of DKI Jakarta and West Java.
Operating high-voltage direct current (DC) fast charging infrastructure in Indonesia requires absolute harmony with both national regulatory mandates and the technical specifications laid out by state electric utility PT Perusahaan Listrik Negara (PLN). HizonSun collaborates directly with regional EPC contractors, state enterprises, and local CPOs to ensure uncompromised local compliance:
SNI & IEC Certifications

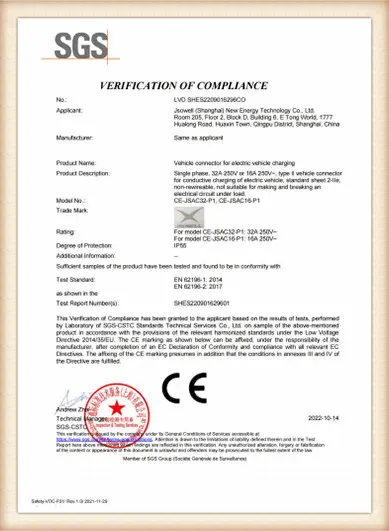

Our charging systems are verified under SNI IEC 61851-1, SNI IEC 61851-23, and IEC 62196 safety standards, allowing smooth operational permitting and passing strict statutory safety audits by the Ministry of Energy and Mineral Resources (ESDM).
TKDN Localization Roadmap
To support developers in meeting TKDN (Tingkat Komponen Dalam Negeri) domestic content quotas mandated by the Ministry of Industry, we provide flexible OEM/SKD options, enabling local assembly of steel enclosures and low-voltage electrical distribution harnesses.
PLN SPKLU Interoperability
Full native integration with OCPP 1.6J and OCPP 2.0.1 JSON protocols ensures seamless cloud communication with PLN's central Charge Point Management System (CPMS) and consumer-facing PLN Mobile platform for centralized billing and telemetry.
Tropical Environmental Hardening (Marine & Monsoon Resistance)
Positioned along the Java Sea, Jakarta’s coastal proximity produces highly saline air in northern zones like Tanjung Priok and Ancol, which accelerates oxidation on standard industrial sheet metal. Our split-type systems feature:
- C5 Marine-Grade Anti-Corrosion Treatment: Heavy-gauge galvanized zinc-plated steel enclosures finished with thermosetting polyurethane powder coating tested against 1,000+ hours of continuous salt spray exposure.
- Dual-Chamber Isolated Thermal Ducting: Critical power electronics and control PCBAs reside in an IP65 sealed chamber isolated completely from external air intake. Heat exchange is performed via heavy-duty aluminum heat pipes and fans with conformal resin coatings that repel moisture, fungus, and industrial sulfur pollution.
- Lightning & Surge Suppression: Built-in Class I + II heavy-duty SPD (Surge Protective Devices) rated up to 40kA/80kA, guarding sensitive rectification silicon against the frequent lightning strikes common during West Java’s torrential wet season.
High-Impact Deployment Scenarios Across Greater Jakarta (Jabodetabek)
Architected for extreme throughput and reliable turn-around at transit depots, multimodal transport corridors, and premier retail hubs.
TransJakarta Bus Terminals & Depots
Locations: Cawang, Kampung Rambutan, Pulogebang, Pinang Ranti.
Configuration: 480kW–720kW split power units driving 8 to 12 overhead or pantograph/dispenser satellites. Overnight trickle equalization balances all packs; daytime opportunity charging delivers 180kW fast top-ups during driver shift changes without blowing the depot's peak demand cap.
Soekarno-Hatta (CGK) Air Cargo Logistics
Locations: Soekarno-Hatta International Airport Cargo Area, Marunda, Tanjung Priok.
Configuration: 360kW systems feeding dual-gun heavy-duty CCS2 satellites for 3-ton to 8-ton electric delivery trucks. High utilization across continuous 24-hour turn-arounds keeps urban logistics corridors moving seamlessly between Tangerang and Jakarta.
Commercial Centers & Superblocks
Locations: SCBD Sudirman, Pantai Indah Kapuk (PIK 2), BSD City, Mega Kuningan.
Configuration: Low-profile satellite terminals blended into premium underground parking garages with zero engine noise. The central rectifier cabinet is tucked away in the primary building utility vault, preventing any sacrifice of valuable VIP parking stalls.
Technical Roadmap: Megawatt Charging (MCS) & BESS Hybridization
Anticipating the technological horizon for heavy commercial transportation and grid buffering across Southeast Asia.
As battery chemistry transitions toward higher voltage plateaus (800V to 1000V nominal architectures) and battery packs expand on heavy-duty mining and intercity transport, charging demands will outstrip conventional 350kW standards. HizonSun’s R&D engineering roadmap establishes clear pathways for future-proofing Jakarta’s charging investments:
Megawatt Charging System (MCS)
Our upcoming split-type generation incorporates liquid-cooled silicon carbide (SiC) conversion matrices capable of delivering up to 1.2MW (1200kW) continuous output under the global MCS standard, targeting long-distance intercity logistics between Jakarta, Bandung, and Surabaya.
BESS Microgrid Buffering
Integrating 200kWh–500kWh Lithium Iron Phosphate (LFP) Battery Energy Storage Systems (BESS) directly onto the common DC busbar of the split-type cabinet. This enables peak-shaving during PLN high-tariff hours and provides ultra-fast charging even on restricted 100kVA grid connections.
Bidirectional V2G Grid Stabilization
Empowering bus operators to convert parked fleet batteries into grid assets. During peak afternoon demand spikes across DKI Jakarta, centralized split systems can discharge controlled energy back into the medium-voltage grid under automated PLN demand-response signals.
Jakarta Procurement FAQ: Split-Type DC Charging Stations
Direct answers for EPC engineers, utility planners, fleet directors, and CPO procurement teams.
Why choose a Split-Type system over multiple integrated 120kW or 180kW chargers in Jakarta?
A Split-Type system centralizes conversion electronics into a single elevated enclosure away from high-traffic zones and seasonal flood risks. It reduces total civil engineering costs, saves up to 60% of parking curb area, eliminates localized acoustic fan noise, and maximizes energy throughput via dynamic matrix sharing—preventing stranded power when vehicles are charging at low rates.
How do HizonSun split chargers withstand Jakarta's severe humidity and coastal air?
We implement a dual-chamber structural design. The power modules and microprocessors are isolated inside an IP65 rated compartment protected from exterior air exchange. Exterior panels undergo C5 marine anti-corrosion coating, while electronic sub-assemblies receive triple conformal polymer coats to block moisture, airborne sulfur, and coastal salt mist common near Jakarta Bay.
What is the maximum distance permissible between the main power cabinet and the satellites?
Our standard split-type DC busbar and cable routing architecture reliably supports distances up to 80 to 100 meters between the central power conversion cabinet and the charging satellite pedestals with less than 0.8% voltage drop. This enables developers to place the heavy power unit inside an indoor electrical vault or elevated mezzanine while running slim cables underground to the parking stalls.
Can the split system interface with PLN's central monitoring and billing infrastructure?
Yes. Every station comes equipped with native OCPP 1.6J and OCPP 2.0.1 compliance, tested and proven with leading third-party CPMS backends, as well as PLN's official SPKLU integration frameworks and local payment gateways (QRIS, LinkAja, Mandiri, BCA e-money).
What happens if one internal power module fails during active depot operation?
The system features true N-1 hardware redundancy. If a single 30kW or 40kW module encounters an internal thermal or electrical fault, it automatically isolates from the DC bus without halting the charging session. The central controller rebalances the matrix across the remaining operational modules, ensuring 24/7 continuous mission-critical fleet availability.
Deploy Reliable High-Power Infrastructure in Jakarta
Connect with our technical engineering team for complete electrical schematics, foundation drawings, PLN grid interconnect consultation, and custom OEM/ODM tenders.
Send Inquiry NowCommercial, Fleet & Energy Storage Charging Hardware
Comprehensive AC, DC fast, and battery-buffered charging units engineered to meet diverse municipal, commercial, and private installation demands throughout Indonesia.

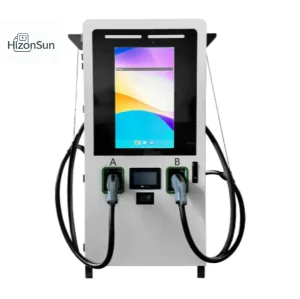

ODM 32-Inch Advertising DC Charging Pile: 60–240kW All-in-One Commercial Solution by China Suppliers and Factory Suppliers, Manufacturers
View Product Specs
OEM 20KW/30KW/40KW DC EV Charger | Wall-mounted & Floor-mounted Fast Charging Station from China Suppliers & Factory Manufacturers, Manufacturer
View Product Specs
OEM 60KW-360KW Dual Gun DC EV Charger | Octagonal Fast Charging Station from China Suppliers & Factory Suppliers, Manufacturers
View Product Specs

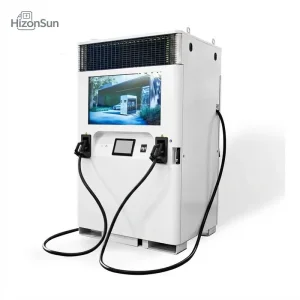

OEM 100KWh & 200KWh Energy Storage Charging Pile – All-in-One EV Charger from China Suppliers and Factory Factories, Manufacturer
View Product Specs

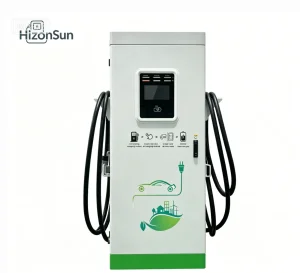

China 40KW-180KW Integrated Floor-Mounted DC EV Charger | Dual Gun | China Suppliers & Factory for Fast Charging Solutions Suppliers, Supplier
View Product Specs

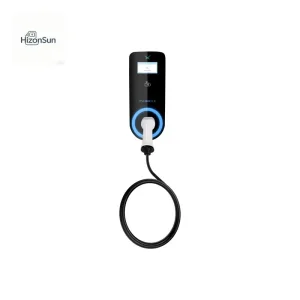

OEM China EV-ONE AC EV Charger | 3.5KW-22KW Wallbox & Floor Mounted Charging Station from Suppliers & Factory Factory, Manufacturers
View Product Specs

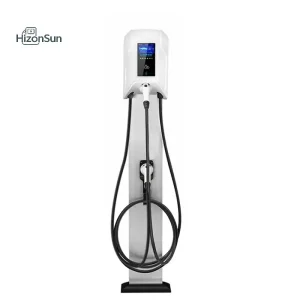

ODM China AC EV Charger | 3.5KW-21KW Dual Gun Charging Station | Factory Suppliers | IP54 Waterproof, Plug & Charge Factories, Manufacturer
